3mm Round Clear Leds

Views:305
Release time:2021-01-12 11:44:16
Telephone:+86-0769-81305858


Description:Product introduction: Model: 3MM round head in-line LED RoHS, REACH certification Size: φ3mm Features: Low light decay, high luminous brightness, high efficiency and power saving, stable performance, long life, simple use and many other advantages. The product has undergone rigorous reliability experiments and has high reliability. Application areas: digital products, LED backlights, LED displays, computers, electronic toys, electronic appliances and other applications.

Consulting service
Product details

Performance

Features:

Adopt Taiwan chip packaging, high temperature resistant glue, 99.99% pure gold wire welding; good product consistency, low light decay, high brightness

Colloid color: white mist (can be customized as required: colored mist, colorless mist, colored transparent, colorless and transparent)

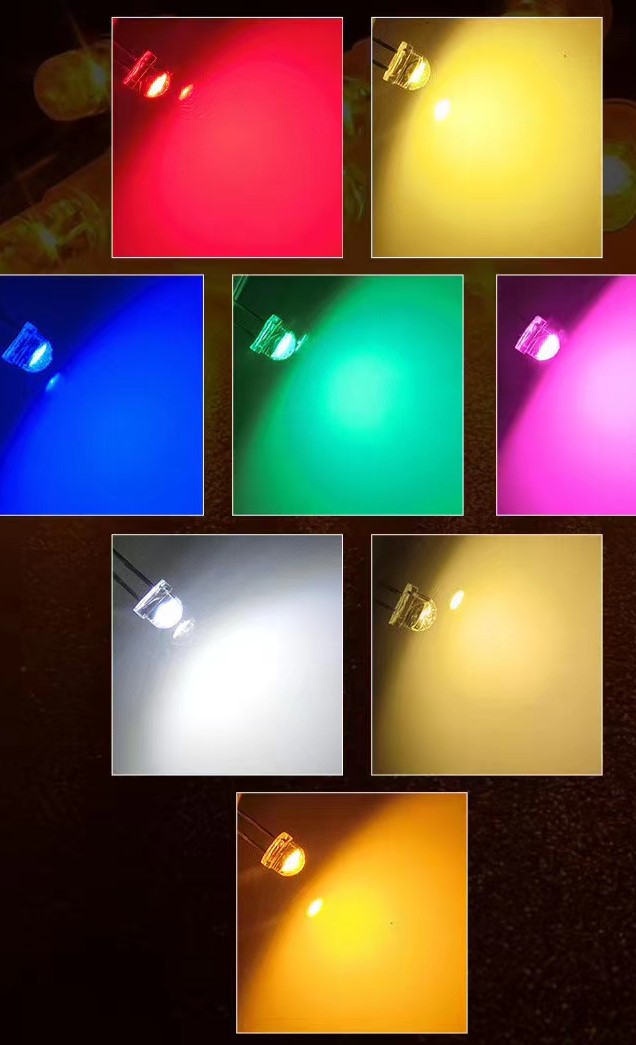

Luminous color: white (can be customized according to requirements: white, red, orange, yellow, ordinary green, emerald green, blue, two-color)

Light angle: 35±5° (angle can be adjusted according to customer requirements)

Product foot length: long feet (26.5mm) or short feet (16.5mm) can be bent and cut according to requirements

Lead-free standard: in line with EU ROHS standard SGS certificate

Packing: Anti-static bag packaging 1000pcs / bag

3mm in-line lamp beads | The full range of specifications includes 3MM round head lamp beads, 3MM flat head lamp beads, 3MM cylindrical lamp beads, and more production of various types of plug-in leds. The luminous colors are red, yellow, blue, green, white, Purple, pink, full range of wavelengths from 380-780NM; models such as F3/3MM, F5/5MM, F8/8MM, F10/10MM and other specifications, please contact online customer service.


Technology

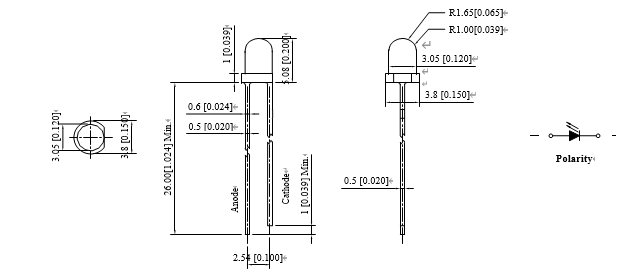

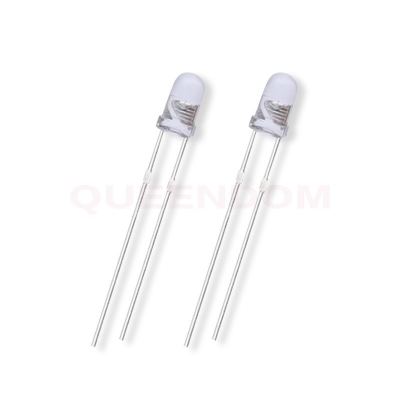

Model: 3MM round head in-line LED   Size: φ3mm

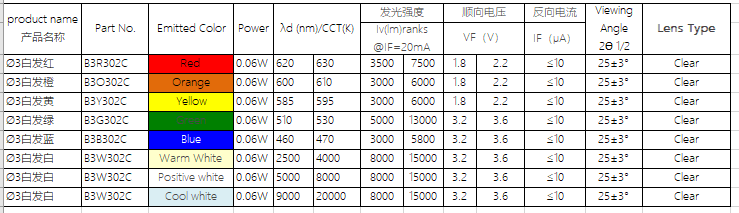

Peak parameters:


Note:1. Derate linearly as shown in Figure 4 for temperature above 25°C.

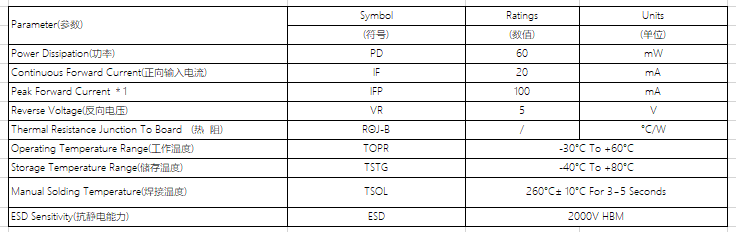

Product number::Absolute Maximum Rating(At TA=25°C)

Notes:

Luminous intensity is measured with a light sensor and filtercombination that approximates the CIE eye-response curve.1/2

is the o-axis angle where the luminous intensity is 1⁄2the peak intensity.c.   The dominant wavelength (λd) is derived from

the CIEchromaticity diagram and represents the single wavelength which defines thecolor of the device.

the CIEchromaticity diagram and represents the single wavelength which defines thecolor of the device.

Using Taiwan chip packaging, high temperature resistant glue, 99.99% pure gold wire welding; good product

consistency, low light decay, high brightness

Colloidal color: can be customized as required: colored fog, colorless fog, colored transparent, colorless and transparent

Luminous color: can be customized as required: white, red, orange, yellow, general green, emerald green, blue, two-color

Light-emitting angle: 25±3° (the angle can be adjusted according to customer requirements)

Lead-free standard: SGS certificate in line with EU ROHS standard



Application

Application areas:

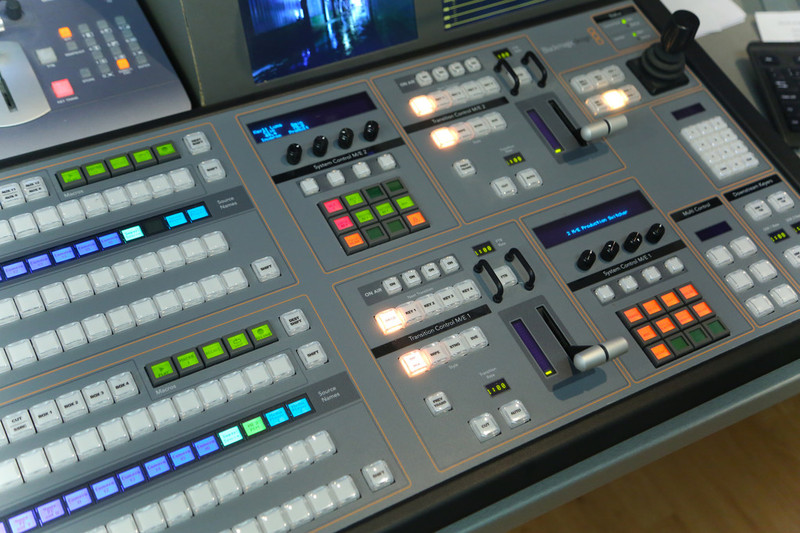

灯珠案例-控制台 (1).jpg

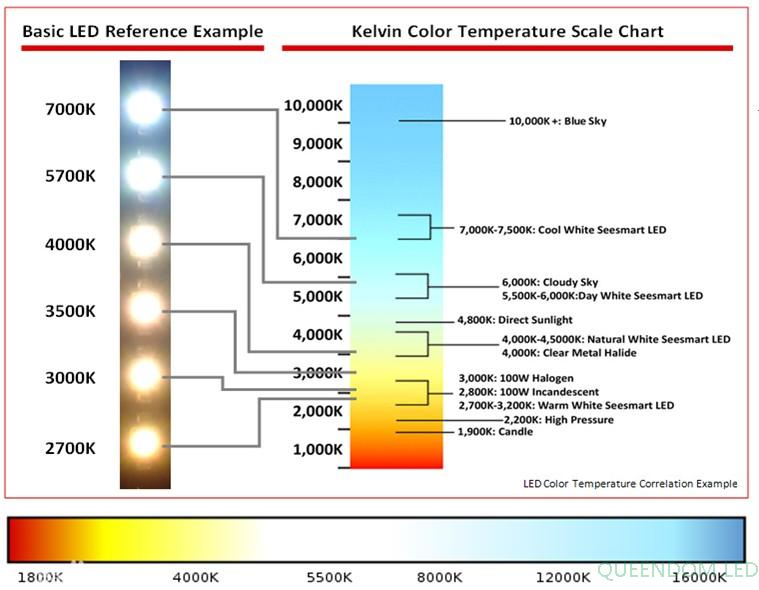

Color classification and color temperature display




LED display: indoor and outdoor billboards, sports scoreboards, information displays, etc.

Signal indicator: city traffic signal lights, highway, railway and airport signal lights, electronic equipmen function instructions in major

and medium cities across the country;

Light color lighting: outdoor landscape lighting and indoor decorative lighting;

Dedicated general lighting: portable lighting (flashlights, headlights), low-light lighting (gallery lights, house lights, garden lights),

reading lighting (reading lights for airplanes, trains and cars), microscope lights, camera flashes, desk lamps, street lights ;

Safety lighting: miner's lamp, explosion-proof lamp, emergency lamp, safety indicator lamp;

Backlight: LCD, LCD TV backlight.

Automotive lights: including interior lighting and exterior lighting. The interior of the car includes dashboards,

electrical product indicators (switches, audio, etc.), switch backlights, reading lights, and external brake lights,

tail lights, side lights and headlights, etc. .

Other applications: consumer use, such as children's flash shoes, Christmas tree LED lights, etc.
