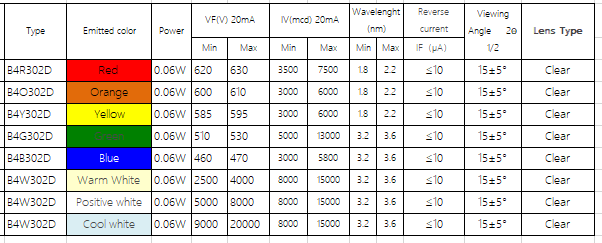

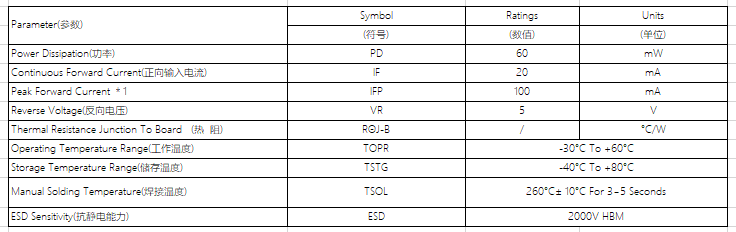

Product number::Absolute Maximum Rating(At TA=25°C)

Notes:

Luminous intensity is measured with a light sensor and filtercombination that approximates the CIE eye-response

 curve.2θ_1/2is the o-axis angle where the luminous intensity is 1⁄2the peak intensity.c.   The dominant wavelength

 (λd) is derived from the CIEchromaticity diagram and represents the single wavelength which defines thecolor

of the device.

product properties:

Using epistar chip, hightemperature resistant Japanese glue, 99.99% pure gold wire welding;

Colloid color: can becustomized according to requirements: colored fog, colorless fog, colored andtransparent,

 colorless and transparent

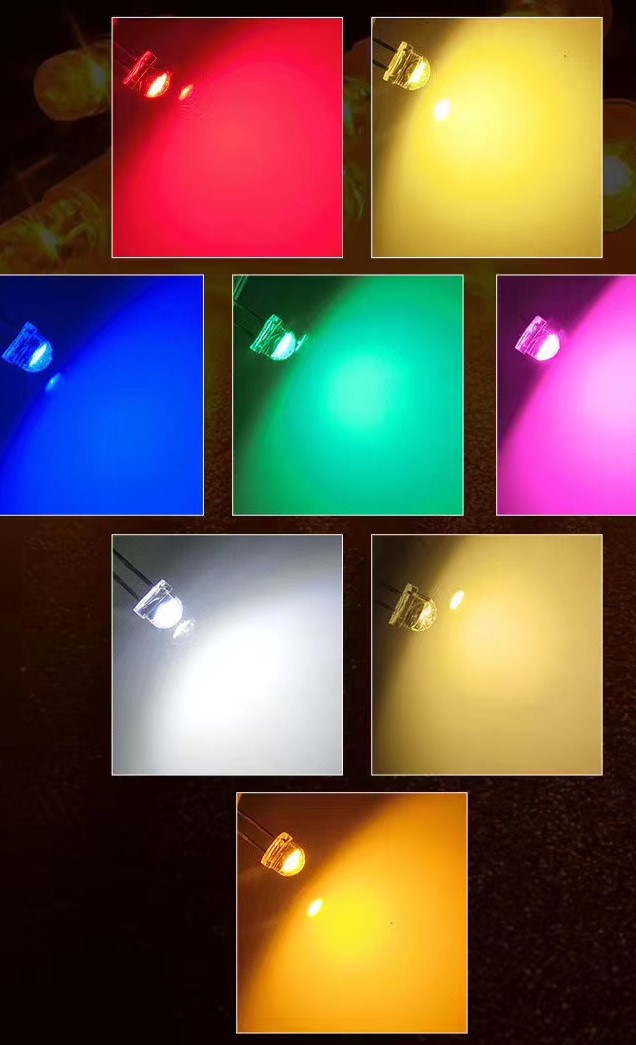

Luminous color: can becustomized according to requirements: white, red, orange, yellow, ordinarygreen, emerald

 green, blue, two colors

Light emitting angle: 35±5°(the angle can be adjusted according to customer requirements)

Product features: highlight efficiency, anti-high temperature, anti-dead lamp, anti-static

Certification standards:SGS certificate in line with EU ROHS, EN60425, REACH standards

Packing: 500-1000pcs/bag inanti-static bag

Application areas:

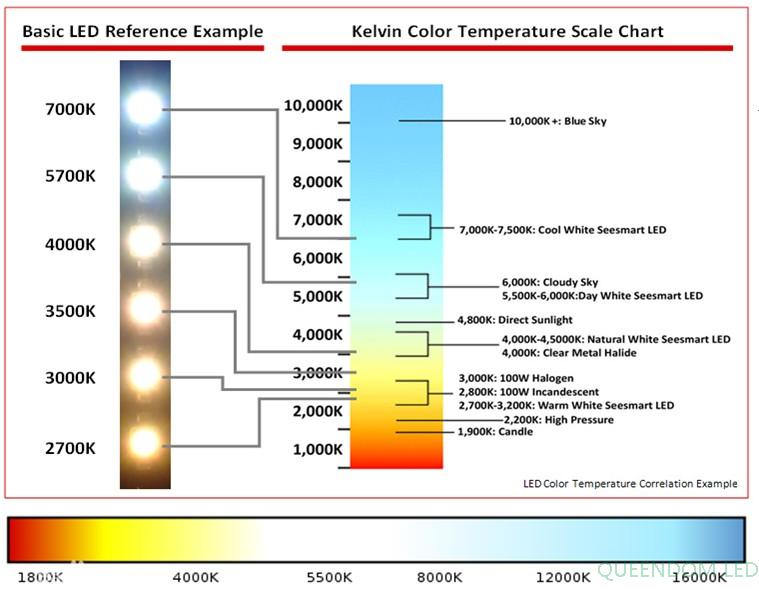

Color classification and color temperature display

LED display: indoor and outdoor billboards, sports scoreboards, information displays, etc.

Signal indicator: city traffic signal lights, highway, railway and airport signal lights, electronic equipmen function instructions in major

and medium cities across the country;

Light color lighting: outdoor landscape lighting and indoor decorative lighting;

Dedicated general lighting: portable lighting (flashlights, headlights), low-light lighting (gallery lights, house lights, garden lights),

reading lighting (reading lights for airplanes, trains and cars), microscope lights, camera flashes, desk lamps, street lights ；

Safety lighting: miner's lamp, explosion-proof lamp, emergency lamp, safety indicator lamp;

Backlight: LCD, LCD TV backlight.

Automotive lights: including interior lighting and exterior lighting. The interior of the car includes dashboards,

electrical product indicators (switches, audio, etc.), switch backlights, reading lights, and external brake lights,

tail lights, side lights and headlights, etc. .

Other applications: consumer use, such as children's flash shoes, Christmas tree LED lights, etc.

MoreLED light-emitting diode products:

SMDLED lamp beads 5630, SMD5630LED lampbeads, SMD LED lamp beads 1206, SMD LEDlamp beads 0603, SMD LED lamp beads0805, SMD LED

lamp beads 3020, SMD LED lampbeads 3014, SMD LED SMD LED lampbeads 3535, SMD LED lamp beads 3528, SMD LEDlamp beads 5050, SMD

LED lampbeads 5630, SMD LED lamp beads 3528RGB, SMD LEDlamp beads 3535RGB,, SMD LEDlamp beads 5050RGB,, stickers SMD LED lamp

beads010, SMD LED lamp beads 020, SMDLED in 335, SMD LED lamp beads 1615, in-lineLED lamp beads, SMD LED lampbeads, high-power LED

lamp beads, high-power launchtube, stickers Chip LEDlamp beads, plug-in LED lamp beads, small butterfly LEDlamp beads, COB planelight source

LED lamp beads, integrated LED lamp beads;please choose QueendomTechnology for the full range of LED lamp beads
