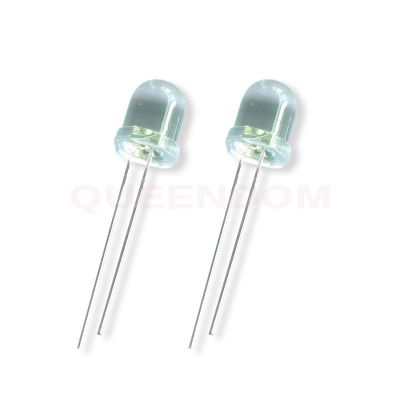

Model: 8mm IR Infrared LED Round DIP Leds   Size: φ8mm

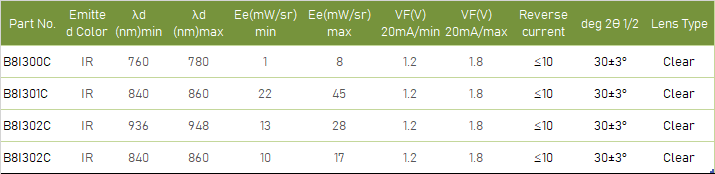

Peak parameters:

Notes:*1:IFP Conditions--PulseWidth≦100μsandDuty≦1%. *2:Soldering time≦5second

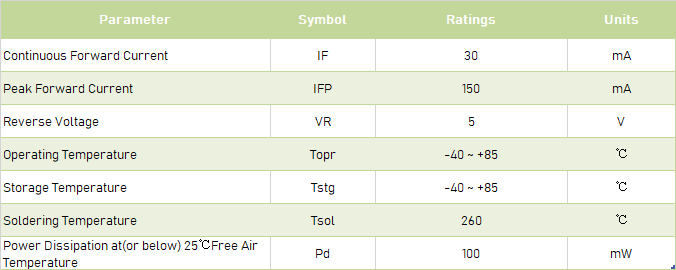

Product number::Absolute Maximum Rating(At TA=25°C)

Application areas:

1. Remote control sensor, concealed infrared surveillance camera, infrared supplementary light emitting tube

, household appliances, 3C digital products, lighting, gift toys, traffic signal light applications, communication

product applications and other fields,

2. Infrared emission tube (infrared lamp tube) can be widely used in infrared cameras, audio output and other

infrared reference products. The power of the chip inside usually determines the emission distance, but the

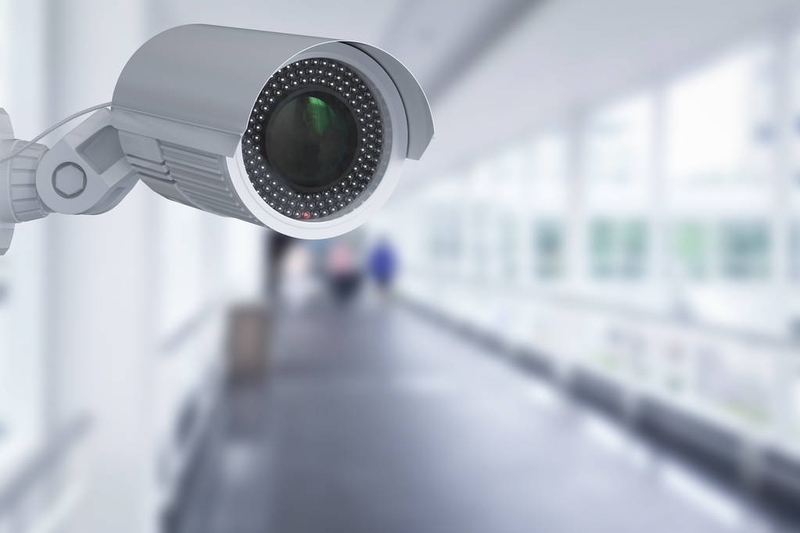

effect of the infrared surveillance camera is related to the angle of the infrared diode and the number of lamp

groups. , Machine board, lens, etc. Infrared cameras are designed to be closer and use larger-angle IR emitters,

and must match the angle of view of the lens; for those above 20 meters, Taiwan’s positive

12mil or above chip must be used, as well as those from Japan. Due to the disorderly competition in the market,

the advertised illumination distance and actual visual distance concepts of manufacturers are unclear. In order

to reduce production costs, most small infrared camera manufacturers use a large number of domestic and

Taiwanese 10mil, 8mil chips, and even bulk wafer packages ( Including the defective product of the IR emission

tube of the packaging factory) make positive infrared lamps to assemble the camera. It is recommended that

users who run long distances still use the positive-type chip packaged IR transmitter tube, which has relatively

slow attenuation and clear night vision. .

An infrared emitter, or IR emitter, is a source of light energyin the infrared spectrum. It is a light emitting diode (LED) that is

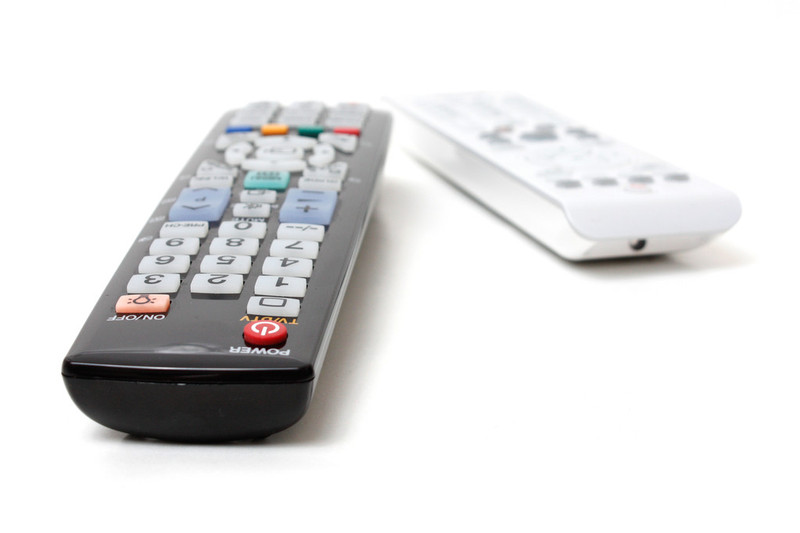

used inorder to transmit infrared signals from a remote control. In general, the morethey are in quantity and the better the

emitters are, the stronger and widerthe resulting signal is. A remote with strong emitters can often be usedwithout directly

pointing at the desired device. Infrared emitters are alsopartly responsible for limits on the range of frequencies that can

becontrolled. An IR emitter generates infrared light that transmits informationand commands from one device to another.

Typically one device receives thesignal then passes the infrared (IR) signal through the emitter to anotherdevice.

Queendom offers many of the most common types categorized by wavelength,angle of half intensity, intensity, packaging type

and forward (drive) current.The most common sizes for wavelength are 875nm, 850nm, 940nm.

A. Infrared LED with wavelength of 940nm: suitable to be usedin remote controller, such as remote controllers for household

appliances.

B. 850nm: suitable to be used in video cameras that are appliedin digital photography, monitoring system, door phone, theft-

proof alarm and soon.

C. 870nm: suitable to be used in IrDA compatible datatransmission, IR illumination for CCTV, miniature light barriers, Photointerrupter,

optical switches, shaft encoders and more.
