emergency panel light
Views:839Release time:2024-04-19 19:19:04
Telephone:+0086 -13612789419
Description:emergency panel light LEDs type: SMD LEDs Lighting method: direct Power: 18W-72W Input voltage: AC85-265V/50-60Hz Material: aluminum + acrylic Protection level: IP40 Lifespan: >50000H (L70, 25℃) Color: 3,000 4100, 5000, 5700, 6500k Emergency power: 3±1 W Charging time: ≥12 hours Emergency time: ≥180min Conversion efficiency: ≥80% Power factor: PF ≥90% Switching time: ≤ 1S
Consulting service
Performance
emergency panel light
OVERVIEW

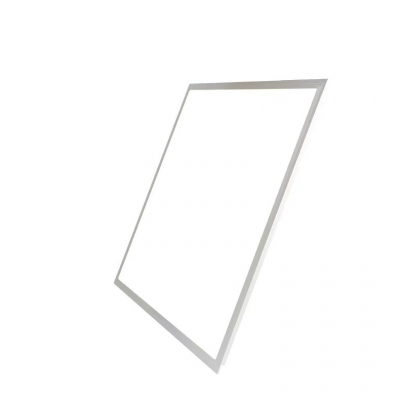

Emergency panel light is a lamp specially designed for emergency lighting. It is usually combined with the normal lighting system. When the power supply is interrupted or an emergency occurs, it can automatically switch to emergency lighting mode to provide necessary lighting; emergency panel light follows The indirect lighting design of the previous generation is elegant and classic, while the appearance has been improved and is slimmer.
Available in sizes of 300×300mm, 600×600, 300×1200 and 600x1200mm (customized products), the maximum system efficiency is 130 lumens/watt. Enables quick and easy installation and is suitable for applications where air outlets are required for office lighting fixtures. Completely indirect lighting design can provide a comfortable visual experience in the office area.
Technology
PRODUCT | RANK NO. | NOMINAL λd(CCT) | SIZE (mm) | POWER(W) | VOLTAGE (VF/V) | FLUX (lm) | EFFECT (LM/W) | CRI (Ra) | TYPICAL DEG | EMERGENCY TIME | CHARGING TIME | |
LED POWER | EMERGENCY POWER | |||||||||||
EPSE3030S118WA2 | ESL0311 | 2700K | 300×300×30mm | 18 | 3±1 W | 110/220 | 1950 lm | 100-130LM/W | 80↑ | 120 | ≥180min | ≥12h |
EPSE3030S118VA2 | ESL0312 | 3000K | 300×300×30mm | 18 | 3±1 W | 110/220 | 1950 lm | 100-130LM/W | 80↑ | 120 | ≥180min | ≥12h |
EPSE3030S118TA2 | ESL0313 | 4000K | 300×300×30mm | 18 | 3±1 W | 110/220 | 1950 lm | 100-130LM/W | 80↑ | 120 | ≥180min | ≥12h |
EPSE3030S118RA2 | ESL0314 | 5000K | 300×300×30mm | 18 | 3±1 W | 110/220 | 1950 lm | 100-130LM/W | 80↑ | 120 | ≥180min | ≥12h |
EPSE3030S118PA2 | ESL0315 | 6000K | 300×300×30mm | 18 | 3±1 W | 110/220 | 1950 lm | 100-130LM/W | 80↑ | 120 | ≥180min | ≥12h |
EPSE0312S138WA2 | ESL0316 | 2700K | 300×1200×30mm | 38 | 3±1 W | 110/220 | 3600 lm | 110-140LM/W | 80↑ | 120 | ≥180min | ≥12h |
EPSE0312S138VA2 | ESL0317 | 3000K | 300×1200×30mm | 38 | 3±1 W | 110/220 | 3600 lm | 110-140LM/W | 80↑ | 120 | ≥180min | ≥12h |
EPSE0312S138TA2 | ESL0318 | 4000K | 300×1200×30mm | 38 | 3±1 W | 110/220 | 3600 lm | 110-140LM/W | 80↑ | 120 | ≥180min | ≥12h |
EPSE0312S138RA2 | ESL0319 | 5000K | 300×1200×30mm | 38 | 3±1 W | 110/220 | 3600 lm | 110-140LM/W | 80↑ | 120 | ≥180min | ≥12h |
EPSE0312S138PA2 | ESL0320 | 6000K | 300×1200×30mm | 38 | 3±1 W | 110/220 | 3600 lm | 110-140LM/W | 80↑ | 120 | ≥180min | ≥12h |
EPSE3060S124WA2 | ESL0321 | 2700K | 300×600×30mm | 24 | 3±1 W | 110/220 | 2400 lm | 100-130LM/W | 80↑ | 120 | ≥180min | ≥12h |
EPSE3060S124VA2 | ESL0322 | 3000K | 300×600×30mm | 24 | 3±1 W | 110/220 | 2400 lm | 100-130LM/W | 80↑ | 120 | ≥180min | ≥12h |
EPSE3060S124TA2 | ESL0323 | 4000K | 300×600×30mm | 24 | 3±1 W | 110/220 | 2400 lm | 100-130LM/W | 80↑ | 120 | ≥180min | ≥12h |
EPSE3060S124RA2 | ESL0324 | 5000K | 300×600×30mm | 24 | 3±1 W | 110/220 | 2400 lm | 100-130LM/W | 80↑ | 120 | ≥180min | ≥12h |
EPSE3060S124PA2 | ESL0325 | 6000K | 300×600×30mm | 24 | 3±1 W | 110/220 | 2400 lm | 110-140LM/W | 80↑ | 120 | ≥180min | ≥12h |
EPSE6060S138WA2 | ESL0326 | 2700K | 600×600×30mm | 38 | 3±1 W | 110/220 | 3600 lm | 110-140LM/W | 80↑ | 120 | ≥180min | ≥12h |
EPSE6060S138VA2 | ESL0327 | 3000K | 600×600×30mm | 38 | 3±1 W | 110/220 | 3600 lm | 110-140LM/W | 80↑ | 120 | ≥180min | ≥12h |
EPSE6060S138TA2 | ESL0328 | 4000K | 600×600×30mm | 38 | 3±1 W | 110/220 | 3600 lm | 110-140LM/W | 80↑ | 120 | ≥180min | ≥12h |
EPSE6060S138RA2 | ESL0329 | 5000K | 600×600×30mm | 38 | 3±1 W | 110/220 | 3600 lm | 110-140LM/W | 80↑ | 120 | ≥180min | ≥12h |
EPSE6060S138PA2 | ESL0330 | 6000K | 600×600×30mm | 38 | 3±1 W | 110/220 | 3600 lm | 110-140LM/W | 80↑ | 120 | ≥180min | ≥12h |
EPSE0612S172WA2 | ESL0331 | 2700K | 600×1200×30mm | 72 | 3±1 W | 110/220 | 7200lm | 110-140LM/W | 80↑ | 120 | ≥180min | ≥12h |
EPSE0612S172VA2 | ESL0332 | 3000K | 600×1200×30mm | 72 | 3±1 W | 110/220 | 7200lm | 110-140LM/W | 80↑ | 120 | ≥180min | ≥12h |
EPSE0612S172TA2 | ESL0333 | 4000K | 600×1200×30mm | 72 | 3±1 W | 110/220 | 7200lm | 110-140LM/W | 80↑ | 120 | ≥180min | ≥12h |
EPSE0612S172RA2 | ESL0334 | 5000K | 600×1200×30mm | 72 | 3±1 W | 110/220 | 7200lm | 110-140LM/W | 80↑ | 120 | ≥180min | ≥12h |
EPSE0612S173PA2 | ESL0335 | 6000K | 600×1200×30mm | 72 | 3±1 W | 110/220 | 7200lm | 110-140LM/W | 80↑ | 120 | ≥180min | ≥12h |
