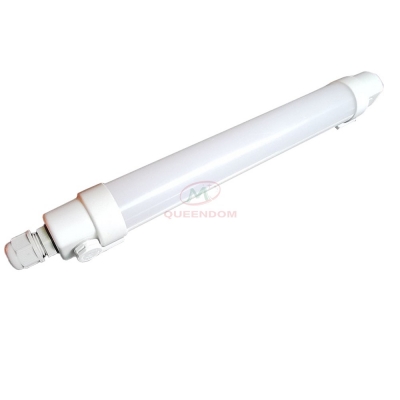

T10 Waterproof tube

Views:325
Release time:2021-10-07 16:04:43
Telephone:+86-0769-81305858


Description:T10 three proof lamp Three proofing lamp [waterproof lamp tube] refers to the three proofs of waterproof, dustproof and anticorrosion. Special anti-oxidation and anti-corrosion materials and silicone sealing ring are used to meet the protection requirements of lamps. The lamp carries out anti-corrosion, water-proof and anti-oxidation treatment on the circuit control board. In view of the weak sealing and heat dissipation ability of the electrical box, the intelligent temperature control three proof lamp special working circuit is designed,

Consulting service
Product details

Technology

Product description

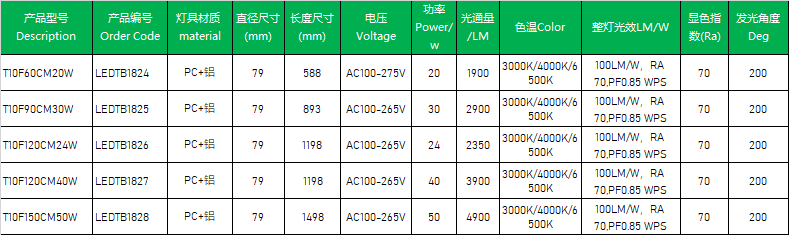

Specifications and models: T5, T6, T8, T10, T12, etc

Light source chip: Crystal 2835 LED lamp beads for light, energy saving than incandescent lamp 80%

Lamp brand: Philips, OSRAM, Hongli=

Service life: up to 50000 hours

Input voltage: AC100-240V 50 / 60Hz

Protection grade: it is filled with high-quality sealing waterproof silica gel, the outer layer is tightly wrapped with waterproof silica gel, transparent AB glue, and the protection grade is IP65 / IP67

Heat dissipation scheme: the circuit board adopts the full glass fiber circuit board with low water absorption and good moisture resistance, with a thickness of 1.2mm and fast heat dissipation

Shell materials: PC, aluminum, PC + aluminum, all plastic thermoplastic engineering plastics

Transmittance: transparent PC cover transmittance 94-96%, light diffusion large stripe PC cover transmittance 90-92%. Light diffusion PC cover light transmittance 85-88%

Flame retardant grade: PC hood flame retardant grade: 94-v2 or 94-V0

Energy saving and environmental protection: high efficiency, low carbon, UV free, energy saving 60%. LED light source has long life, low power consumption and durable. Odorless, non-toxic PC plastic, with excellent physical properties, can work at low temperature for a long time

3. Scope of application

Shelf, display cabinet, air curtain cabinet, island cabinet, vertical air cabinet, plant, plant, fish tank, fresh food, beverage, cold storage room, freezer, or indoor and outdoor wet area, etc


Waterproof lamp tube is composed of lamp plate, lamp shell, waterproof components and heat dissipation aluminum material, which can also be called waterproof lamp tube. That is to say, the outer ring is a sealed PC tube with an aluminum bar and a D-shaped aluminum material inside,

Mainly for solving the problem of plastic pipe

It can improve the safety performance of the finished product to a certain extent, and can reduce the long-term lighting temperature of the plastic pipe by using the aluminum structure

It is formed after the temperature rises

curvature. At present, the outer ring of the lamp shell can be made into full diffusion tube, full transparent tube, blue two-color tube, white two-color tube, waterproof lamp shell kit covers T5, T6, T8, T10, T12

And so on,
