2835 SMD LEDs-0.2W-1W

Views:245
Release time:2021-01-26 17:45:51
Telephone:+86-0769-81305858


Description:product properties: Using epistar chip, high temperature resistantJapanese glue, 99.99% pure gold wire welding; Colloid color: can be customized according torequirements: colored fog, colorless fog, colored and transparent, colorlessand transparent Luminous color: can be customized according torequirements: white, red, orange, yellow, ordinary green, emerald green, blue,two colors Light emitting angle: 120±5° (the angle can beadjusted according to customer requirements) Product features: high light efficiency,anti-high temperature, anti-dead lamp, anti-static Certification standards: SGS certificate in linewith EU ROHS, EN60425, REACH standards Packing: 3000/4000pcs/bag in anti-static bag

Consulting service
Product details

Technology

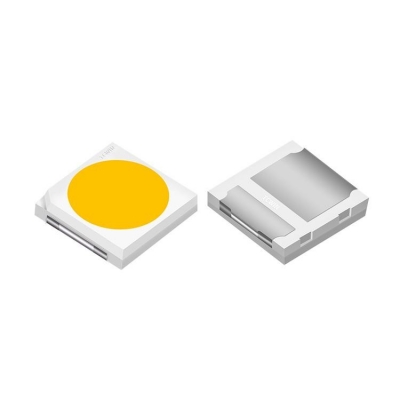

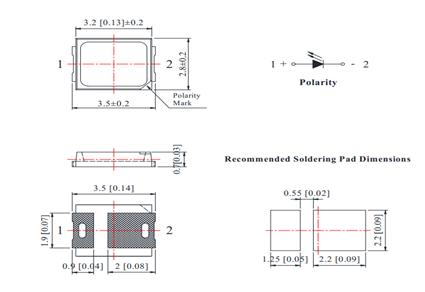

Model: 2.80mm×3.50mm×0.70mm PLCC-2 Top View Single Color LED



Peak parameters:

Ø   Absolute Maximum Rating(At TA=25°C)     SymbolRatingsUnits
ParameterPD60-100mW
Continuous   Forward CurrentIF20-350mA
Peak Forward Current *1IFP100-350mA
Reverse   VoltageVR5V
Thermal Resistance Junction To   Board   J-B/°C/W
Operating   Temperature RangeTOPRMinus 30°C To plus 60°C
Storage Temperature RangeTSTGMinus 40°C To   plus 80°C
Manual   Solding TemperatureTSOL260°C± 10°C For 3~5 Seconds
ESD SensitivityESD2000V HBM

Note:1. Derate linearly as shown in Figure 4 for temperature above 25°C.

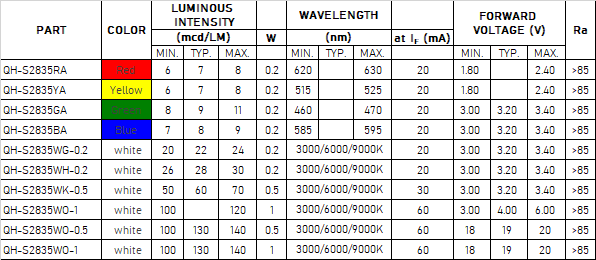

Product number::Absolute Maximum Rating(At TA=25°C)


Notes:

Luminous intensity is measured with a light sensor and filtercombination that approximates the CIE eye-response curve.1/2

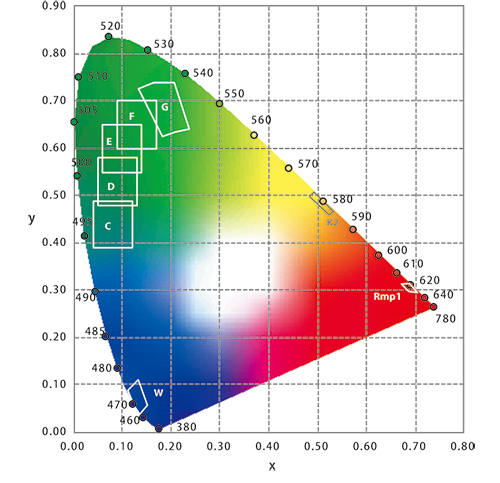

is the o-axis angle where the luminous intensity is 1⁄2the peak intensity.c.   The dominant wavelength (λd) is derived from

the CIEchromaticity diagram and represents the single wavelength which defines thecolor of the device.

product properties:

Using epistar chip, high temperature resistantJapanese glue, 99.99% pure gold wire welding;

Colloid color: can be customized according torequirements: colored fog, colorless fog, colored and

transparent, colorlessand transparent

Luminous color: can be customized according torequirements: white, red, orange, yellow, ordinary green,

emerald green, blue,two colors

Light emitting angle: 120±5° (the angle can beadjusted according to customer requirements)

Product features: high light efficiency,anti-high temperature, anti-dead lamp, anti-static

Certification standards: SGS certificate in linewith EU ROHS, EN60425, REACH standards

Packing: 3000/4000pcs/bag in anti-static bag

Queendom’s top-emitting PLCC SMD LED products fulfill thedemands of a variety of applications. This

type of top-emitting LED isavailable in a variety of sizes, shapes, viewing angles and color combinations.

With high reliability and a competitive lead time, Queendom’s top-emitting PLCCSMD LED is a popular

choice. Browse our selection, but if you don’t see whatyou’re looking

for please contact us.Due to their properties of low power consumption and RoHScompliance, these

LEDs boast the widest range of potential applications. Forconsumer applications, they provide crisp

and bright color. For industrialapplications, they provide reliable performance and customizable variety.

Finally, they are also used as illuminating icons and for status indication.


Application areas:

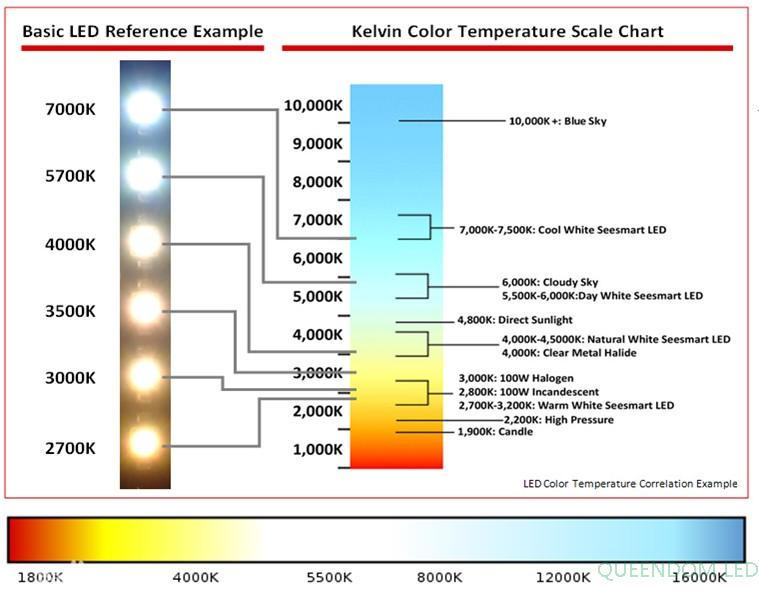

Color classification and color temperature display

20210122


LED display: indoor and outdoor billboards, sports scoreboards, information displays, etc.

Signal indicator: city traffic signal lights, highway, railway and airport signal lights, electronic equipmen function instructions in major

and medium cities across the country;

Light color lighting: outdoor landscape lighting and indoor decorative lighting;

Dedicated general lighting: portable lighting (flashlights, headlights), low-light lighting (gallery lights, house lights, garden lights),

reading lighting (reading lights for airplanes, trains and cars), microscope lights, camera flashes, desk lamps, street lights ;

Safety lighting: miner's lamp, explosion-proof lamp, emergency lamp, safety indicator lamp;

Backlight: LCD, LCD TV backlight.

Automotive lights: including interior lighting and exterior lighting. The interior of the car includes dashboards,

electrical product indicators (switches, audio, etc.), switch backlights, reading lights, and external brake lights,

tail lights, side lights and headlights, etc. .

Other applications: consumer use, such as children's flash shoes, Christmas tree LED lights, etc.

More LED light-emitting diode products:

QUEENDOM Technology specializes intheproduction and sales: SMD 2835 LED lamp beads, 2835 high voltage LEDlampbeads, SMD high

voltage lamp beads, 2835 SMD light-emitting diodes, SMDLEDs,SMD 2835 lamp beads, high voltage drive SMD lamp beads, LEDLight-emittingdiode,

LED chip lamp beads, 1W2835 lamp beads and other series ofchip LED lampbeads

More   LED light-emitting diode products:

DIP LEDsCylindricalLEDOvalType LEDStrawhatLEDRectangularLEDSMDLEDsPurple UV LEDs IRLED(Visible LED) HighPower

LED For more information, customer serviceDIP LEDsCylindricalLEDOvalType LED,.StrawhatLEDRectangularLEDSMDLEDs,

PurpleUV LEDs IRLED(Visible LED)HighPower LED,Round Led, Body Led ,Rgb Led Color Led, ound Led Diode, Round Led Lamp ,Rgb Led Diode.


Singlecolor PLCC LEDs series is perfectly suited for a variety of cross-industrialapplications due to its small

 package outline, durability and superiorbrightness. Its versatility and reliability

make it a preferred choice forautomotive interior lighting specifically as instrumentation panel, centralconsole and

cabin backlighting. Besides, it effectively combines performanceand innovation, making it a perfect choice for office

automation, homeapplications, various decorations lighting, commercial lighting and industrialequipment application.

Theseseries of products are encapsulated in silicon to increase their tolerance ofenvironmentally hostile applications.

Several Flux choices are available ineach color for increasing design flexibility.


LINE ID:2020131419   WeChat: SUNBOY1913   KYPE:164634777@qq.com    http://www.ledlight86.com/    E-mail:ib@cn-led.net

Theentry is created, edited and maintained by Guangdong QueendomTechnology. If youfind that the content of the entry is suspected of

infringement, pleasecontact us via E-mail: gm@cn-led.net, and we will deal with it in a timelymanner in accordance with relevant laws and

regulations.Withoutpermission, commercial websites, etc. are prohibited from copying and grabbingthe contents of Toutiao Encyclopedia;

reasonable users, copyright cooperationE-mail: gm@cn-led.net, please indicate the source from   www.ledlight86.com. Feedback 2020 cn-led.net

Queendomoffers an extensive range of high quality Single color chip LED which are smallsize, high efficiency and low power consumption.
