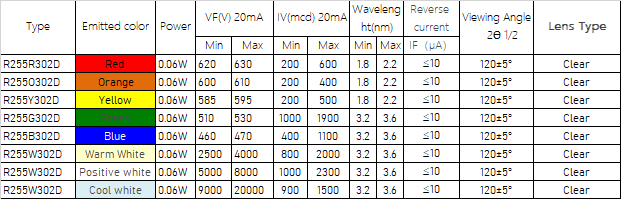

Product number::Absolute Maximum Rating(At TA=25°C)
Luminous intensity is measured with a light sensor and filtercombination that approximates the CIE eye-response curve.2θ1/2

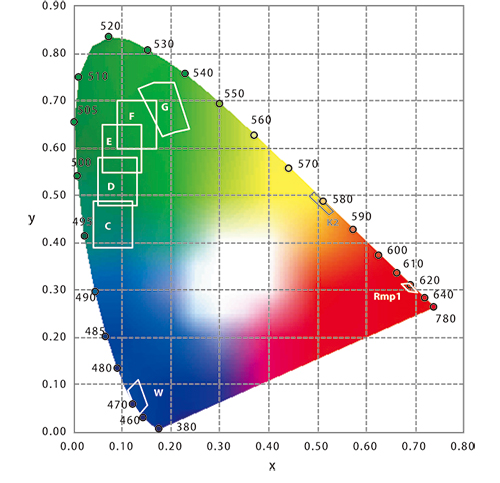

is the o-axis angle where the luminous intensity is 1⁄2the peak intensity.c. The dominant wavelength (λd) is derived from
the CIEchromaticity diagram and represents the single wavelength which defines thecolor of the device.

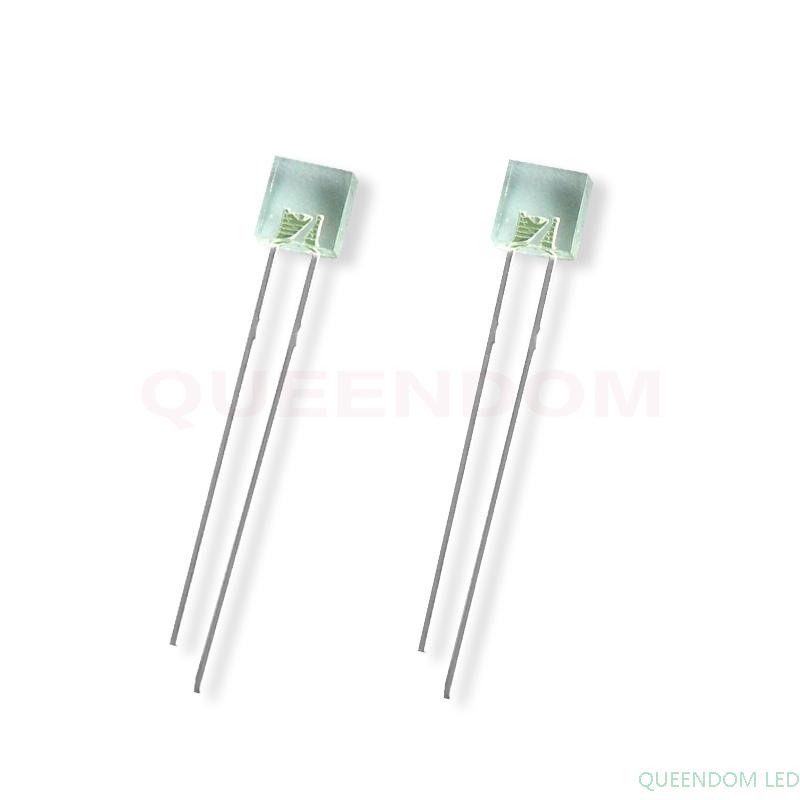

product properties: Using epistar chip, hightemperature resistant Japanese glue, 99.99% pure gold wire welding;
Colloid color: can be customized according torequirements: colored fog, colorless fog, colored and transparent, colorlessand transparent
Luminous color: can be customized according to requirements:white, red, orange, yellow, ordinary green, emerald green, blue, two
angle: 120±5° (the angle can be adjustedaccording to customer requirements)
Product features: high light efficiency,anti-high temperature, anti-dead lamp, anti-static Certification
standards: SGS certificate in line with EU ROHS,EN60425, REACH standards
Packing: 1000pcs/bag in anti-static bag Colortemperature range [effect display]

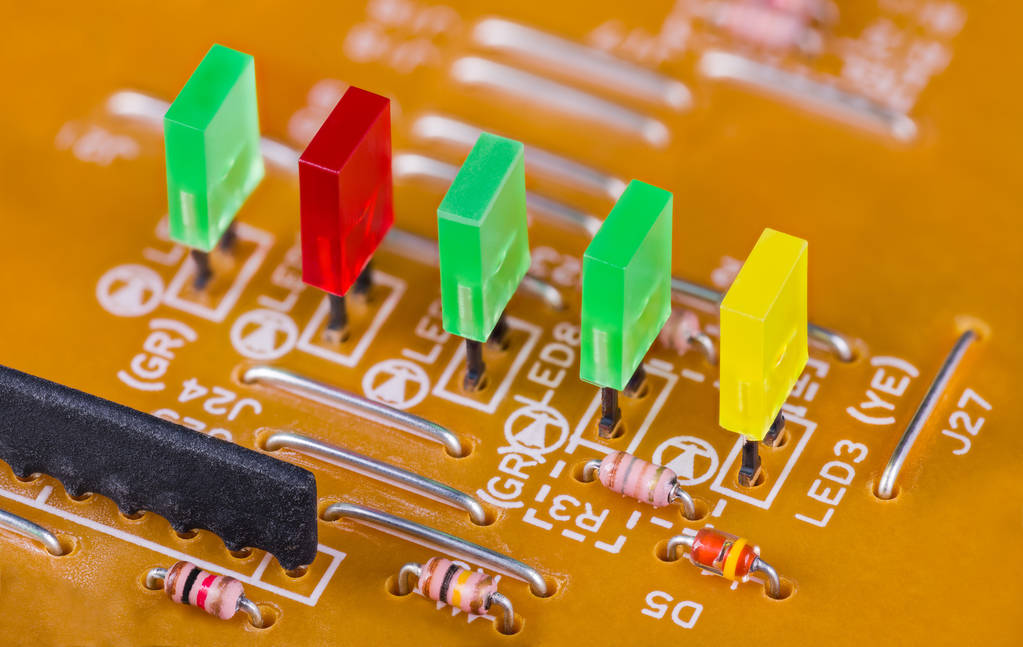

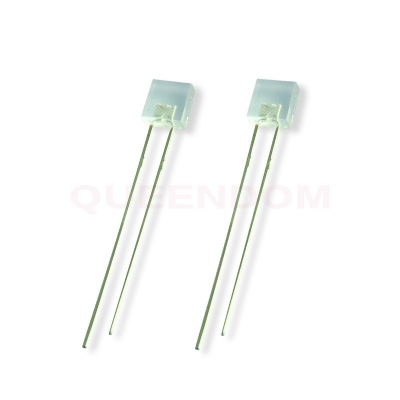

Through-hole Rectangular LEDs aresuitable for all applications requiring instruments, switches, iconbacklighting, and general status
indication. There are 3 types oftechnology based LEDs lamps. The chips with GaP technology are for low tomoderate light output requirements,
and the ones with AllnGaP and InGaNtechnologies are for high brightness light output.

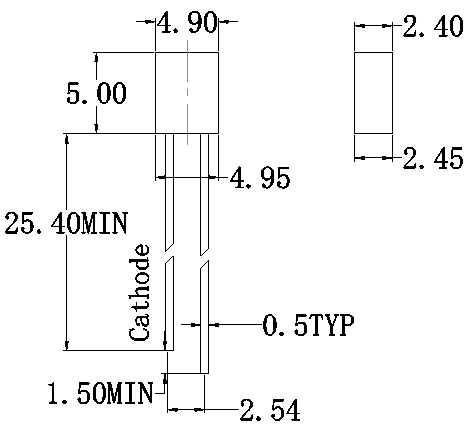

Through-hole Rectangular LEDs areoffered in a variety of packages such as 1.0*5.0mm, 2*3mm, 1.9*3.9mm, 2*5mm,3*3mm, 3.7*6.3mm, 5*5mm,
with integrated built-in resistor or low currentoptions, and color choices include green, red, yellow, white, blue and orange.
These devices are molded from advancedoptical grade epoxy, which provide superior high temperature performance andexcellent moisture
resistance. Diffused, color transparent and optical designare balanced to yield superior light output. Several intensity choices areavailable
in each color for increasing design flexibility.

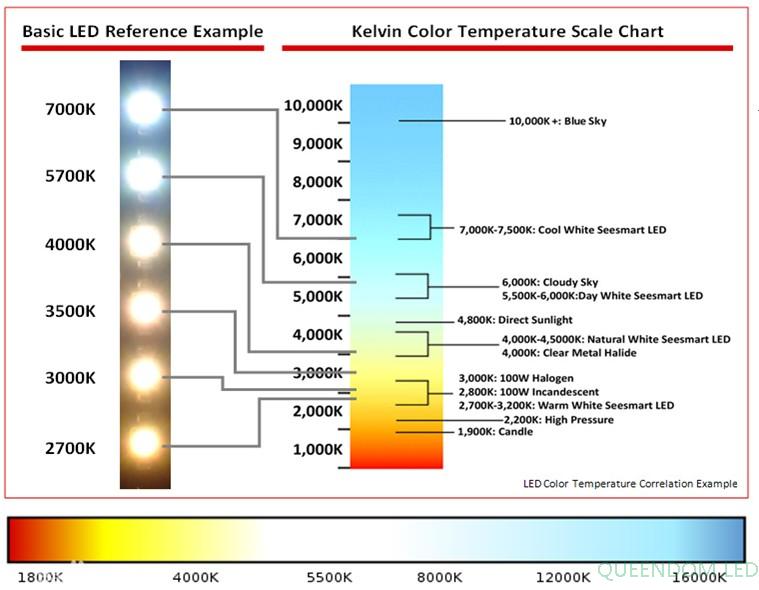

Color classification and color temperature display
LED display: indoor and outdoor billboards, sports scoreboards, information displays, etc.

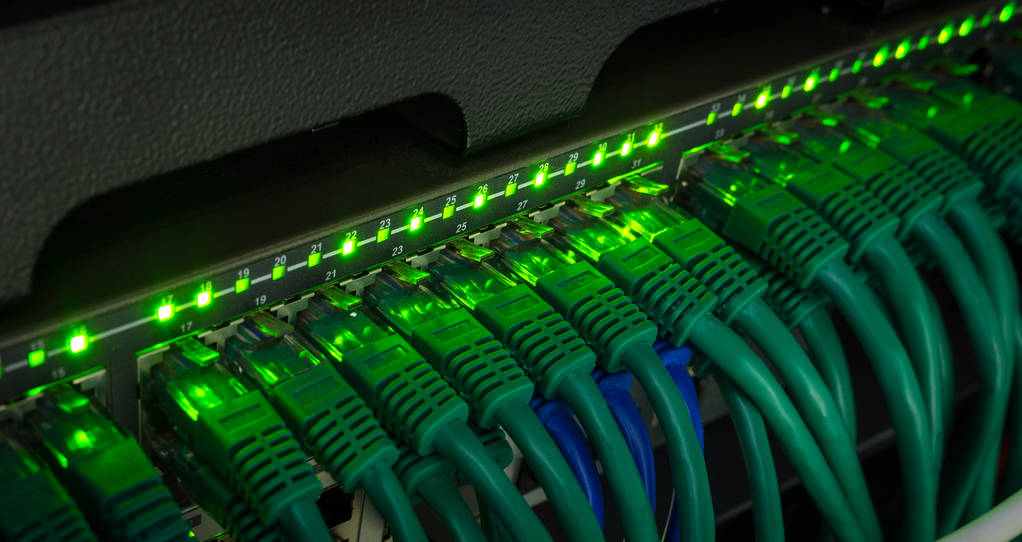

Signal indicator: city traffic signal lights, highway, railway and airport signal lights, electronic equipmen function instructions in major
and medium cities across the country;
Light color lighting: outdoor landscape lighting and indoor decorative lighting;
Dedicated general lighting: portable lighting (flashlights, headlights), low-light lighting (gallery lights, house lights, garden lights),
reading lighting (reading lights for airplanes, trains and cars), microscope lights, camera flashes, desk lamps, street lights ；
Safety lighting: miner's lamp, explosion-proof lamp, emergency lamp, safety indicator lamp;
Backlight: LCD, LCD TV backlight.
Automotive lights: including interior lighting and exterior lighting. The interior of the car includes dashboards,
electrical product indicators (switches, audio, etc.), switch backlights, reading lights, and external brake lights,
tail lights, side lights and headlights, etc. .
Other applications: consumer use, such as children's flash shoes, Christmas tree LED lights, etc.
More LED light-emitting diode products:
DIP LEDs，CylindricalLED，OvalType LED，StrawhatLED，RectangularLED，SMDLEDs，Purple UV LEDs， IRLED(Visible LED) HighPower
LED For more information, customer service，DIP LEDs，CylindricalLED，OvalType LED，.StrawhatLED，RectangularLED，SMDLEDs，
PurpleUV LEDs， IRLED(Visible LED)，HighPower LED,Round Led, Body Led ,Rgb Led Color Led, ound Led Diode, Round Led Lamp ,Rgb Led Diode.
Hottags:LED light-emitting diodes, line lights, waterproof tubes,fingerprintlocks, pet supplies, LED light-emitting diodes, plug-in lamp beads,
SMD lampbeads, high-power lamp beads, LED linear lights, indoor linearlights,commercial Super line lights, supermarket lighting, smart locks, petsupplies,
supermarket lighting, fresh lights, shelf lights, freezer lights, LEDrigidlight bars, special LED lights for freezer
LINE ID :2020131419 WeChat:SUNBOY1913 KYPE:email@example.com http://www.ledlight86.com/ E-mail:firstname.lastname@example.org
The entry is created, edited andmaintained by Guangdong QueendomTechnology. If you find that the contentof the entry is suspected of infringement,
please contact us via E-mail:email@example.com, and we will deal with it in a timely manner in accordancewith relevant laws and regulations.Without permission,
commercial websites,etc. are prohibited from copying and grabbing the contents of Toutiao Encyclopedia;reasonable users, copyright cooperation
E-mail: firstname.lastname@example.org, pleaseindicate the source from www.ledlight86.com.Feedback 2020 cn-led.net
Queendom’s oval through hole LED products are used in a number of applications including traffic signage, decorative and entertainment lighting,
commercial and residential architectural lighting, and more. These RGB LEDs come in a variety of colors and luminous intensities. Browse our selection,
but if you don’t see what you’re looking for please contact us.
