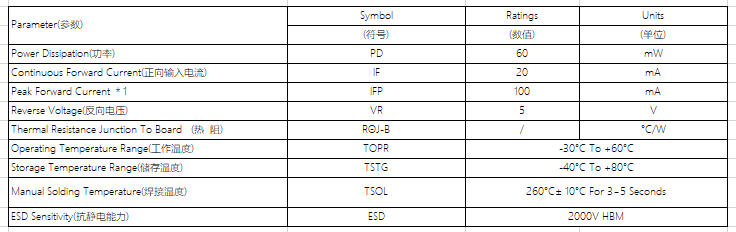

Product number::Absolute Maximum Rating(At TA=25°C)

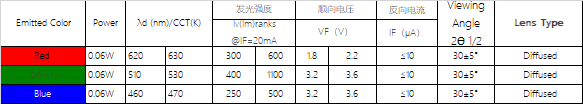

Notes:

Luminous intensity is measured with a light sensor and filtercombination that approximates the CIE eye-response curve.2θ_1/2

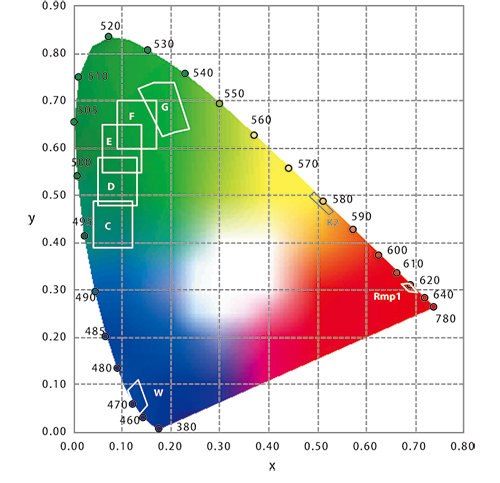

is the o-axis angle where the luminous intensity is 1⁄2the peak intensity.c.   The dominant wavelength (λd) is derived from

the CIEchromaticity diagram and represents the single wavelength which defines thecolor of the device.

product properties:

Using epistar chip, hightemperature resistant Japanese glue, 99.99% pure gold wire welding;

Colloid color: can becustomized according to requirements: colored fog, colorless fog, colored andtransparent, colorless and transparent

Luminous color: can becustomized according to requirements: white, red, orange, yellow, ordinarygreen, emerald green, blue, two colors

Light emitting angle: 35±5°(the angle can be adjusted according to customer requirements)

Product features: highlight efficiency, anti-high temperature, anti-dead lamp, anti-static

Certification standards:SGS certificate in line with EU ROHS, EN60425, REACH standards

Packing: 500-1000pcs/bag inanti-static bag

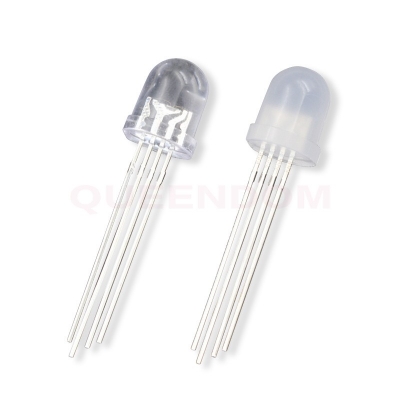

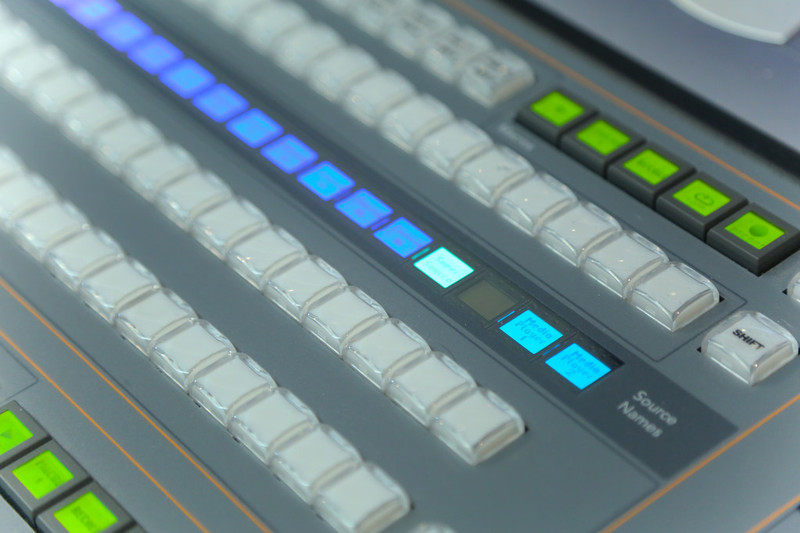

Through-hole Multi-Color LEDs aresuitable for all applications requiring instruments, switches, iconbacklighting, status indication and

more. Through-hole Multi-Color LEDs areoffered in a variety of packages such as 3mm, 5mm, 8mm, 2*5mm rectangular andCylindrical type LEDs.

Through-hole Bi-Color LEDs areavailable in red-green, yellow-green color combinations. They contain twointegral chips which are bi-color

and bi-polar types. Through-hole Tri-ColorLEDs are available in RGB and red-green-yellow color combinations.

These devices are molded from advancedoptical grade epoxy, which provide superior high temperature performance andexcellent moisture

resistance. Diffused and Water Clear are balanced to yieldsuperior light output and wide viewing angles.

Whether you’re looking for a Tri-colorLED or Bi-color LED, Queendom   can help.Browse our selection, but if you don’t see what you’re

looking for pleasecontact us

Application areas:

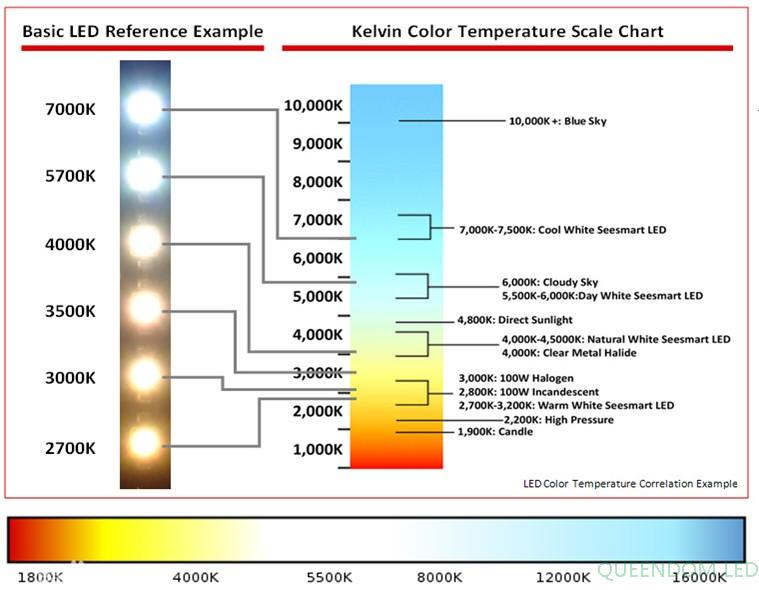

Color classification and color temperature display

LED display: indoor and outdoor billboards, sports scoreboards, information displays, etc.

Signal indicator: city traffic signal lights, highway, railway and airport signal lights, electronic equipmen function instructions in major

and medium cities across the country;

Light color lighting: outdoor landscape lighting and indoor decorative lighting;

Dedicated general lighting: portable lighting (flashlights, headlights), low-light lighting (gallery lights, house lights, garden lights),

reading lighting (reading lights for airplanes, trains and cars), microscope lights, camera flashes, desk lamps, street lights ；

Safety lighting: miner's lamp, explosion-proof lamp, emergency lamp, safety indicator lamp;

Backlight: LCD, LCD TV backlight.

Automotive lights: including interior lighting and exterior lighting. The interior of the car includes dashboards,

electrical product indicators (switches, audio, etc.), switch backlights, reading lights, and external brake lights,

tail lights, side lights and headlights, etc. .

Other applications: consumer use, such as children's flash shoes, Christmas tree LED lights, etc.

More LED light-emitting diode products:

DIPLEDs，CylindricalLED，OvalType LED，Strawhat LED，RectangularLED，SMD LEDs，PurpleUV LEDs， IR LED(Visible LED)

HighPower LED For more information, customer service
