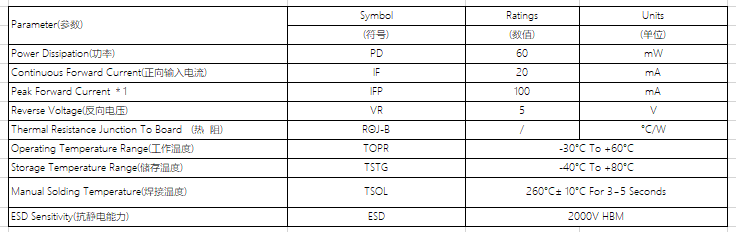

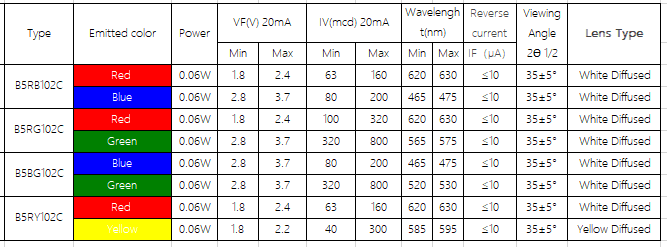

Product number::Absolute Maximum Rating(At TA=25°C)

Notes:

Luminous intensity is measured with a light sensor and filtercombination that approximates the CIE eye-response curve.2θ_1/2

is the o-axis angle where the luminous intensity is 1⁄2the peak intensity.c.   The dominant wavelength (λd) is derived from

the CIEchromaticity diagram and represents the single wavelength which defines thecolor of the device.

product properties:

Using epistar chip, hightemperature resistant Japanese glue, 99.99% pure gold wire welding;

Colloid color: can becustomized according to requirements: colored fog, colorless fog, colored andtransparent, colorless and transparent

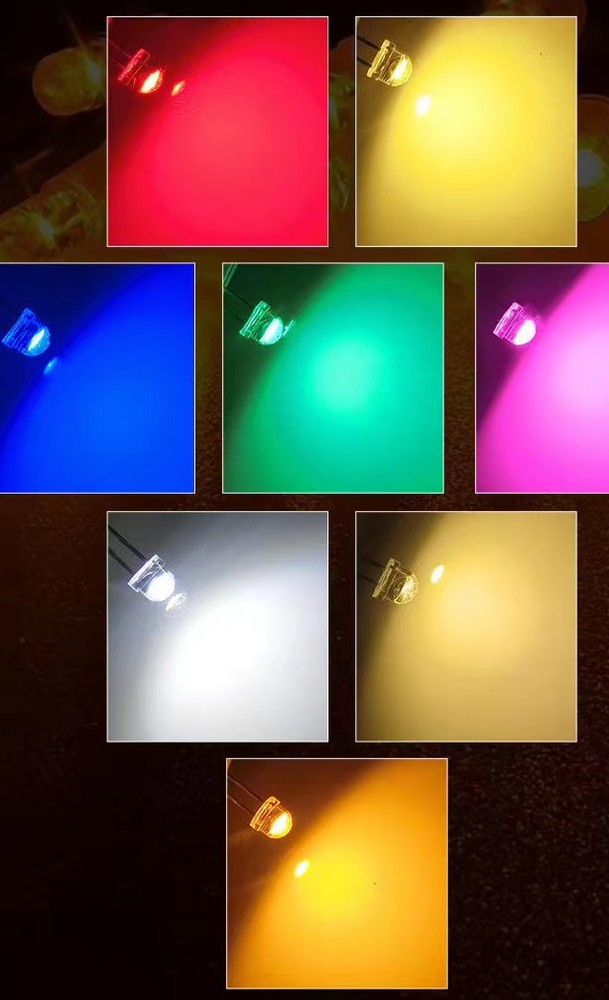

Luminous color: can becustomized according to requirements: white, red, orange, yellow, ordinarygreen, emerald green, blue, two colors

Light emitting angle: 35±5°(the angle can be adjusted according to customer requirements)

Product features: highlight efficiency, anti-high temperature, anti-dead lamp, anti-static

Certification standards:SGS certificate in line with EU ROHS, EN60425, REACH standards

Packing: 500-1000pcs/bag inanti-static bag

Application areas:

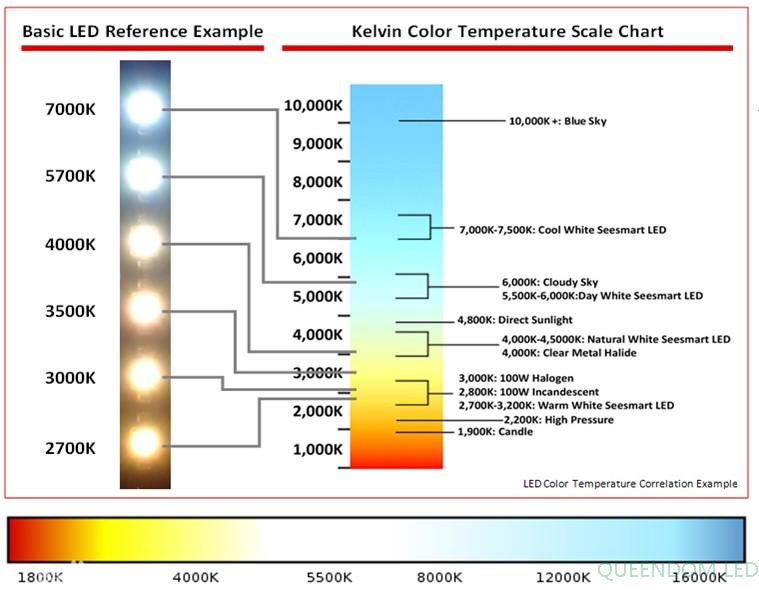

Color classification and color temperature display

LED display: indoor and outdoor billboards, sports scoreboards, information displays, etc.

Signal indicator: city traffic signal lights, highway, railway and airport signal lights, electronic equipmen function instructions in major

and medium cities across the country;

Light color lighting: outdoor landscape lighting and indoor decorative lighting;

Dedicated general lighting: portable lighting (flashlights, headlights), low-light lighting (gallery lights, house lights, garden lights),

reading lighting (reading lights for airplanes, trains and cars), microscope lights, camera flashes, desk lamps, street lights ；

Safety lighting: miner's lamp, explosion-proof lamp, emergency lamp, safety indicator lamp;

Backlight: LCD, LCD TV backlight.

Automotive lights: including interior lighting and exterior lighting. The interior of the car includes dashboards,

electrical product indicators (switches, audio, etc.), switch backlights, reading lights, and external brake lights,

tail lights, side lights and headlights, etc. .

Other applications: consumer use, such as children's flash shoes, Christmas tree LED lights, etc.
