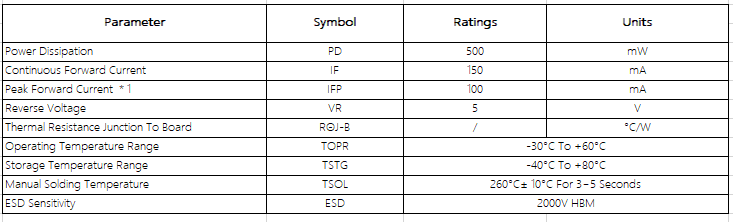

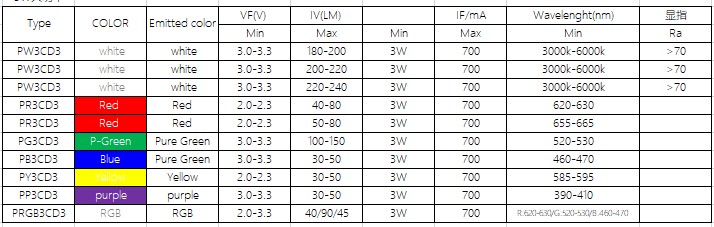

Product number::Absolute Maximum Rating(At TA=25°C)

Notes:Luminous intensity is measured with a light sensor and filtercombination that approximates the CIE eye-response curve.2θ_1/2

is the o-axis angle where the luminous intensity is 1⁄2the peak intensity.c.   The dominant wavelength (λd) is derived from the

CIEchromaticity diagram and represents the single wavelength which defines thecolor of the device.

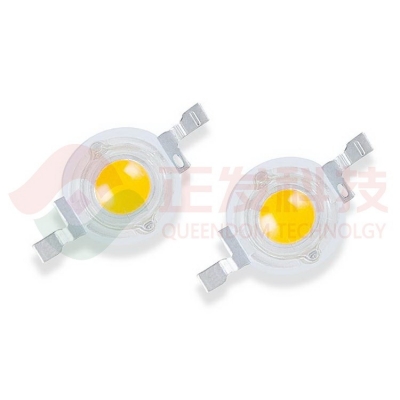

product properties:

Using American Bridgelux chip, high temperature resistant Japanese glue, 99.99% pure gold wire welding;

Colloid color: can be customized according to requirements: colored fog, colorless fog, colored and transparent,

colorless and transparent

Luminous color: can be customized according to requirements: white, red, orange, yellow, ordinary green,

emerald green, blue, two colors

Beam angle: 125/55±5° (angle can be adjusted according to customer requirements)

Product features: high light efficiency, anti-high temperature, anti-dead lamp, anti-static

Certification standards: SGS certificate in line with EU ROHS, EN60425, CE standards

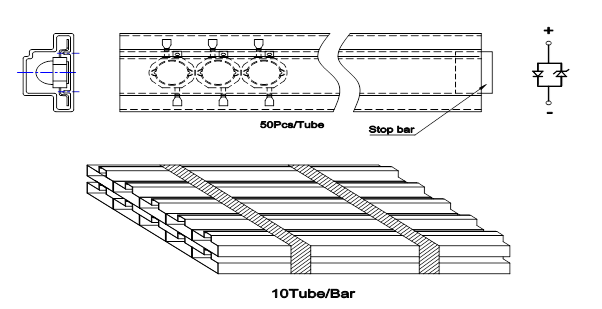

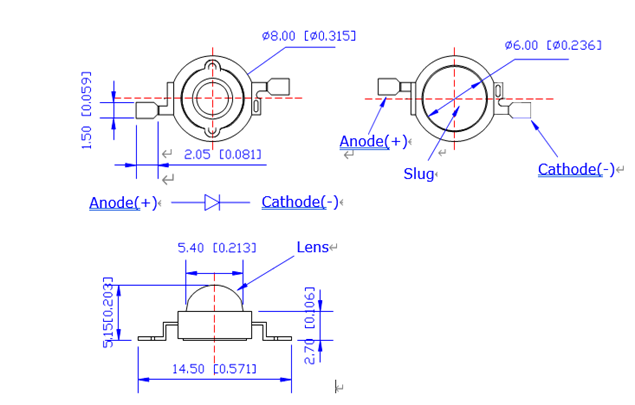

package:

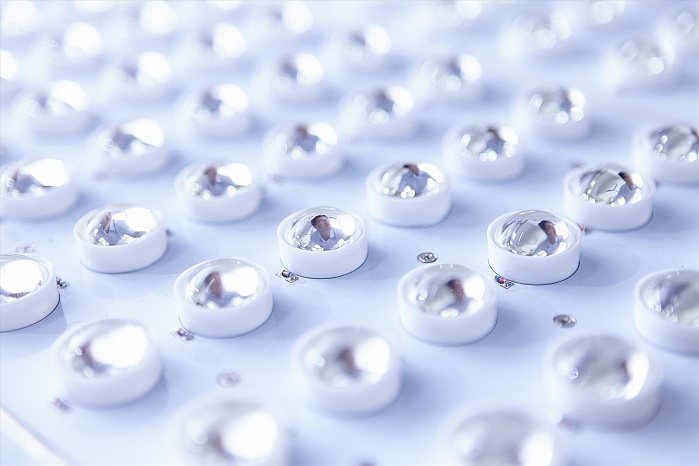

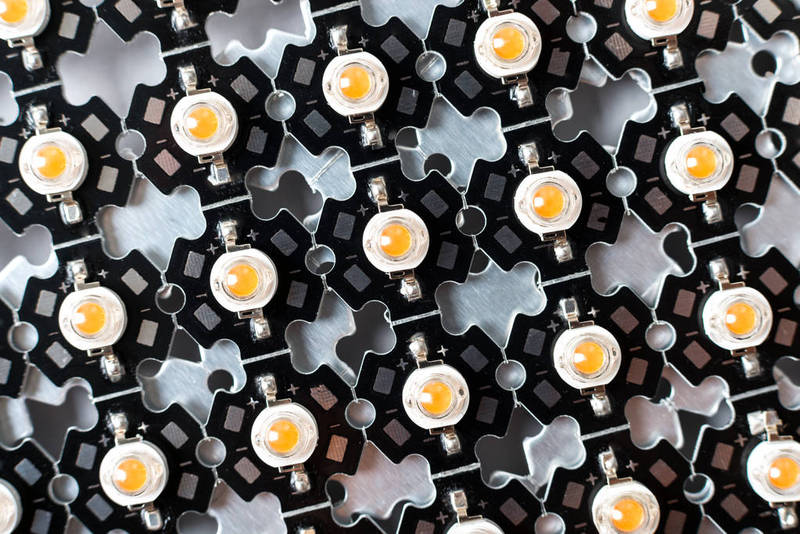

Product display effect

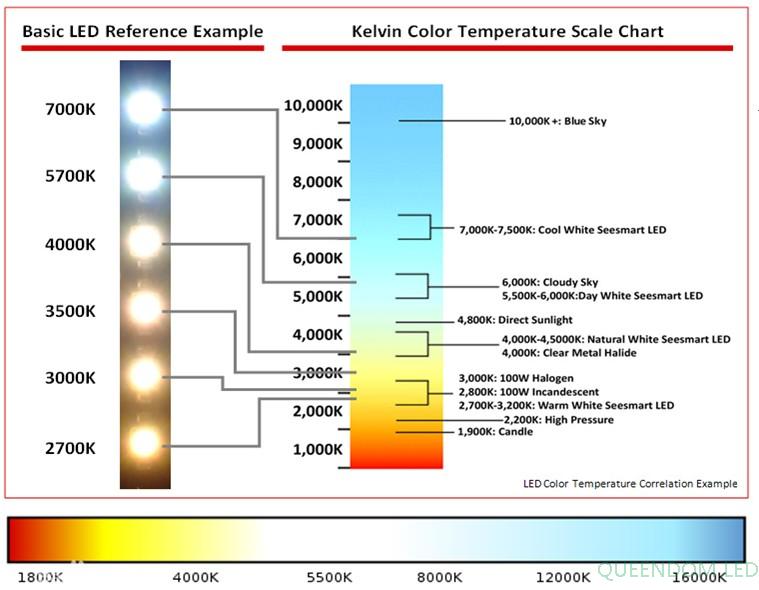

Color temperature range [effect display]

Application range [effect display]

Fluorescent lamp, street lamp, ceiling lamp, flood light, wall washer, underground lamp, courtyard lamp, high bay lamp,

ceiling lamp, bulb lamp, spot lamp, corn lamp, module, etc.

Application areas:

LED display: indoor and outdoor billboards, sports scoreboards, information displays, etc.

Signal indicator: city traffic signal lights, highway, railway and airport signal lights, electronic equipment function

instructions in major and medium cities across the country;

Light color lighting: outdoor landscape lighting and indoor decorative lighting;

Dedicated general lighting: portable lighting (flashlights, headlights), low-light lighting (gallery lights, house lights, garden lights), reading lighting

(reading lights for airplanes, trains, and cars),

microscope lights, camera flashes,

Table lamp, street lamp; safety lighting: miner's lamp, explosion-proof lamp, emergency lamp, safety indicator lamp;

Backlight: LCD, LCD TV backlight.

Automotive lights: including interior lighting and exterior lighting. The interior of the car includes dashboards, electrical

product indicators (switches, audio, etc.), switch backlights, reading lights, and external brake lights, tail lights, side lights

and headlights, etc. .

Other applications: consumer use, such as children's flash shoes, Christmas tree LED lights, etc.
