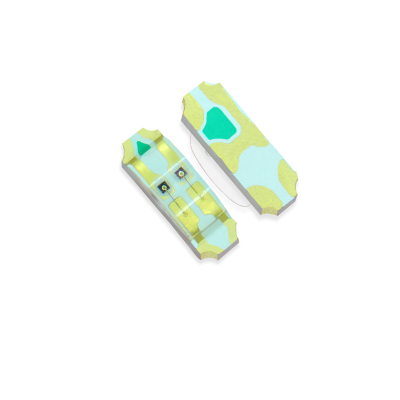

3010 Bi-Color SMD LEDs
Views：2470Release time：2021-01-23 17:47:07
Telephone：+0086 -13612789419
Description：Product Introduction-Model：3010 SMD lamp beads SMD product features: ● Small size ● High brightness ● Low attenuation ● Instant light up ● Super long life ● Various colors to choose Product application: ● Backlight module ● Car interior ● High-end digital ● Signal indication ● Smart home ● Industrial equipment
Consulting service
Performance
Model:3.00mm×1.00mm×2.00mm (1204) With Right Lens Multi-Color Chip LED
Peak parameters:
| Ø Absolute Maximum Rating(At TA=25°C) | Symbol | Ratings | Units |
| Parameter | PD | 60 | mW |
| Continuous Forward Current | IF | 20 | mA |
| Peak Forward Current ＊1 | IFP | 100 | mA |
| Reverse Voltage | VR | 5 | V |
| Thermal Resistance Junction To Board | RΘJ-B | / | °C/W |
| Operating Temperature Range | TOPR | Minus 30°C To plus 60°C | |
| Storage Temperature Range | TSTG | Minus 40°C To plus 80°C | |
| Manual Solding Temperature | TSOL | 260°C± 10°C For 3~5 Seconds | |
| ESD Sensitivity | ESD | 2000V HBM |
Note:1. Derate linearly as shown in Figure 4 for temperature above 25°C.
Product number::Absolute Maximum Rating(At TA=25°C)
Notes:
Luminous intensity is measured with a light sensor and filtercombination that approximates the CIE eye-response curve.2θ1/2
is the o-axis angle where the luminous intensity is 1⁄2the peak intensity.c. The dominant wavelength (λd) is derived from
the CIEchromaticity diagram and represents the single wavelength which defines thecolor of the device.
Technology
Color classification and color temperature display
Patch product features:
Small size 、High brightness 、 Low attenuation 、 Instant lighting、Long life 、Multiple colors to choose from
Product application:
Backlight module 、Automotive interior 、 High-end digital、 Signal indication 、Smart home 、 Industrial equipment
LED display: indoor and outdoor billboards, sports scoreboards, information displays, etc
reading lighting (reading lights for airplanes, trains and cars),
Safety lighting: miner's lamp, explosion-proof lamp, emergency lamp, safety indicator lamp;switch backlights,
Backlight: LCD, LCD TV backlight.
Automotive lights: including interior lighting and exterior lighting. The interior of the car includes dashboards,
electrical product indicators (switches, audio, etc.), reading lights, and external brake lights,
Other applications: consumer use, such as children's flash shoes, Christmas tree LED lights, etc.
Application
Application areas:
SMDstands for Surface Mounted Devices, a special type of high power LED lights.With no wires, these devices provide less fuss and with
seamless application.Instead, SMDs have tiny metallic contacts that can be directly soldered tocircuit boards. Queendom's vast selection
of SMD LEDs are sure to fit yourneeds. Our surface mount device LEDs are energy efficient and provide asuperior lighting experience.
Queendomoffers a selection of SMD LEDs that are designed to meet the specifications ofyour application. Our SMD LED product offering
is most commonly used forportable devices, company consumer electronics, industrial handheld devices andmore. Contact Queendom today
for more information about the products below.
Singlecolor chip LED products are available in standard and high brightness colors.We adopt our proven AlGaAs, AlInGaP and InGaN technology
and provide thebroadest range of colors from well-known LED chip suppliers. These products usethe industry standard
footprint, with top-mount, reverse-mount, and rightangle-mount packaging options. We offer lights with such colors like and colorchoices
include green, red, yellow, white, blue and orange.
Singlecolor chip LEDs are used in a variety of applications including automotiveinterior and indication lighting, LCD and push button
backlighting, white goodsand appliances, industrial measurement and control systems, and for symbollighting and status indication
in computer peripherals and consumer goods.
Lowpower consumption, small size and easy assembly make the Chip LED ideal forbacklighting smartphone handsets as well as backlighting
industrial displays.Only aportion of Queendom's product information is available on this website. Pleasecontact Queendom for any unfound
or custom-made items.
