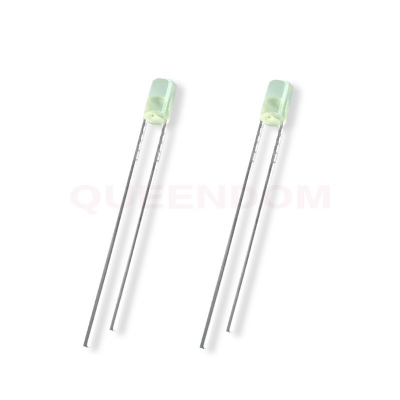

3mm Cylindrical LED
Views:2011Release time:2021-11-12 20:20:29
Telephone:+0086 -13612789419
Description:Product introduction: Model: 3mm flat head DIP Leds Size: φ3mm Features: low light attenuation, high luminous brightness, high efficiency and power saving, stable performance, long life, simple use and many other advantages. The product has undergone strict reliability experiments and has high reliability. RoHS, REACH certification Application areas: household appliances, 3C digital products, lighting, gifts, toys, traffic lights, communications products, etc.
Consulting service
Technology
Model: 3mm flat head DIP Leds Size: φ3mm

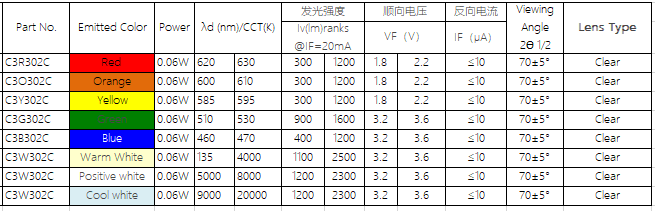

Peak parameters:
Note:1. Derate linearly as shown in Figure 4 for temperature above 25°C.

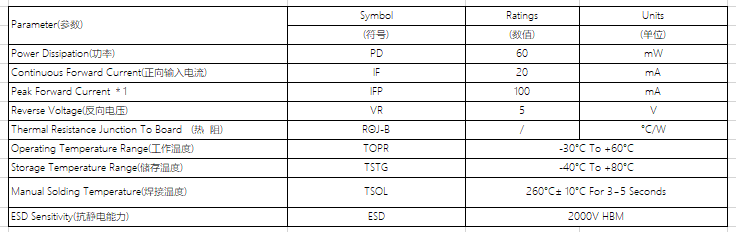

Product number::Absolute Maximum Rating(At TA=25°C)
Notes:
Luminous intensity is measured with a light sensor and filtercombination that approximates the CIE eye-response curve.2θ1/2
is the o-axis angle where the luminous intensity is 1⁄2the peak intensity.c. The dominant wavelength (λd) is derived from
the CIEchromaticity diagram and represents the single wavelength which defines thecolor of the device.
Using Taiwan chip packaging, high temperature resistant glue, 99.99% pure gold wire welding; good product
consistency, low light decay, high brightness
Colloidal color: can be customized as required: colored fog, colorless fog, colored transparent, colorless and transparent

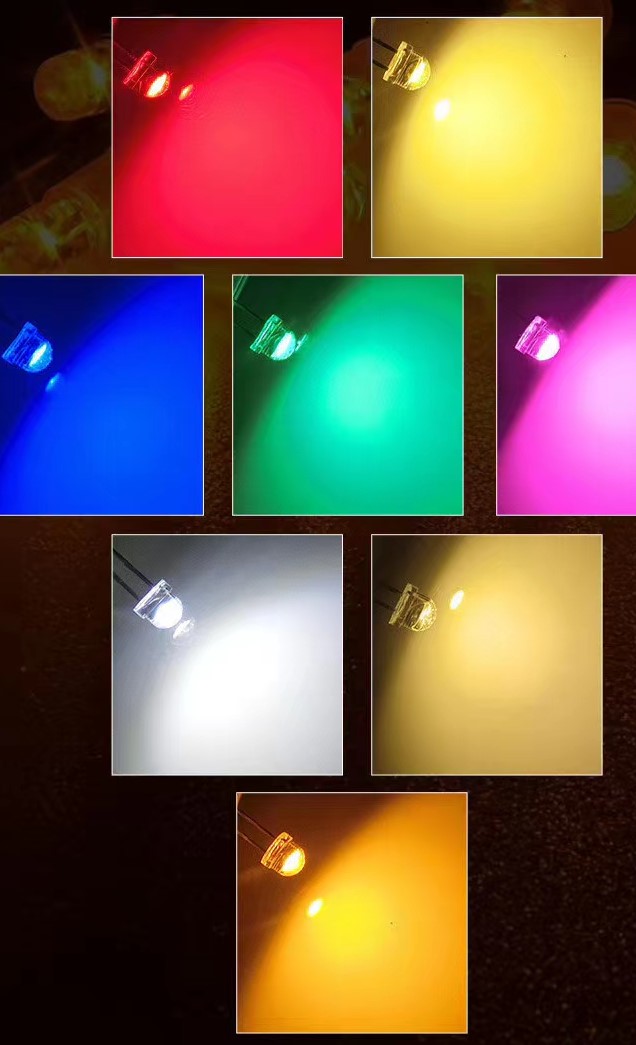

Luminous color: can be customized as required: white, red, orange, yellow, general green, emerald green, blue, two-color
Light-emitting angle: 25±3° (the angle can be adjusted according to customer requirements)
Lead-free standard: SGS certificate in line with EU ROHS standard
Application areas:

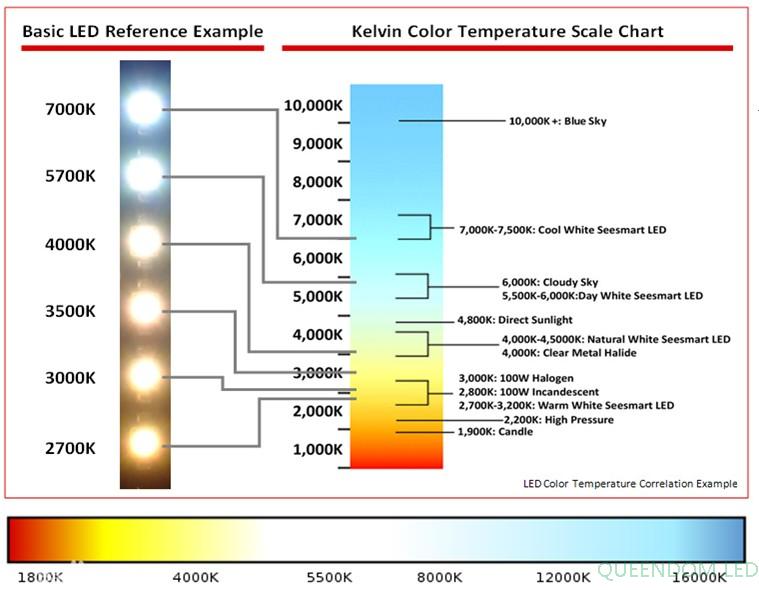

Color classification and color temperature display
LED display: indoor and outdoor billboards, sports scoreboards, information displays, etc.
Signal indicator: city traffic signal lights, highway, railway and airport signal lights, electronic equipmen function instructions in major
and medium cities across the country;
Light color lighting: outdoor landscape lighting and indoor decorative lighting;
Dedicated general lighting: portable lighting (flashlights, headlights), low-light lighting (gallery lights, house lights, garden lights),
reading lighting (reading lights for airplanes, trains and cars), microscope lights, camera flashes, desk lamps, street lights ;
Safety lighting: miner's lamp, explosion-proof lamp, emergency lamp, safety indicator lamp;
Backlight: LCD, LCD TV backlight.
Automotive lights: including interior lighting and exterior lighting. The interior of the car includes dashboards,
electrical product indicators (switches, audio, etc.), switch backlights, reading lights, and external brake lights,
tail lights, side lights and headlights, etc. .
Other applications: consumer use, such as children's flash shoes, Christmas tree LED lights, etc.
The entry is created, edited and maintained by China QUEENDOM Technology. If you find that the entry content is suspected of infringement,
please contact us via E-mail: gm@cn-led.net, and we will deal with it in a timely manner in accordance with relevant laws and regulations.
Without permission, commercial websites,are prohibited from copying and grabbing the contents of Toutiao Encyclopedia; reasonable users,
copyright cooperation E-mail: gm@cn-led.net, please indicate the source from www.cn-led.net. Feedback 2020 cn-led.net
Guangdong Zhengfa Technology specializes in the production of 3mm in-line lamp beads, 3mm recessed lamp beads, 3mm plug-in LED lamp beads, 3mm monochromatic full-color series lamp beads, the quality can reach the latest European and American standards.The company's main products: LED lamp beads, LED light-emitting diodes, in-line lamp beads, high-power lamp beads, SMD LED lamp beads, LED lamps, LEDUV lamps, LED disinfection lamps, has a mature and complete LED lamp manufacturing system, DongguanLED lamp packaging manufacturer, LED lamp customization, LED lamp manufacturer
Application
3mm lamp beads, F3 lamp beads,3mm flat head,3mm plug lamp beads. For more specifications, please contact online customer service. and more production of various types of plug-in leds. The luminous colors are red, yellow, blue, green, white, Purple, pink, full range of wavelengths from 380-780NM; models such as F3/3MM, F5/5MM, F8/8MM, F10/10MM and other specifications, please contact online customer service.
