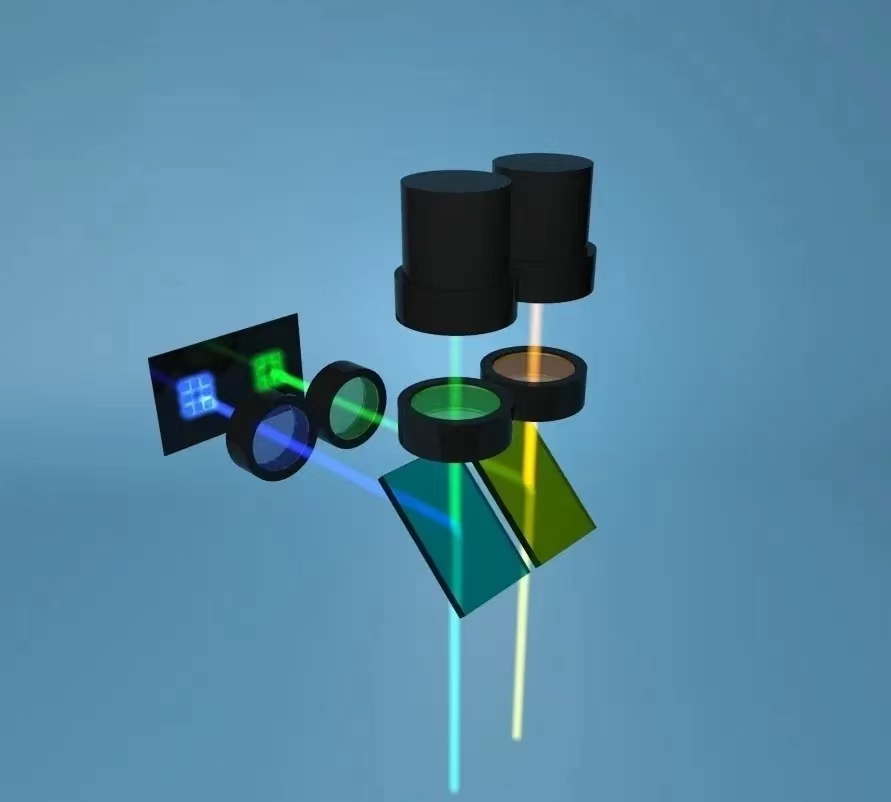

Description:PCR light source:For the irradiation end of the rapid PCR instrument, if the diameter of 5/8/10mm in-line LED is used, the optical path is shown in Figure 1 after optimized design. The light emitted by the in-line LED is first collimated by a plano-convex glass lens, and then passed through a tape Filter the light through the filter, and finally condense the light into the fiber through a glass spherical lens. Plano-convex glass lens and filter, glass ball lens fiber pass light, numerical aperture NA = 0.56. Separation between filter and glass ball lens = 3-5mm. The light spot at the end face of the fiber is shown in Figure 2. ZEMAX simulation found that the energy utilization rate of light is about 25.658%, compared with the packaged SMD LED (the energy utilization rate of light is about 85%)

Consulting service
Product details

Performance

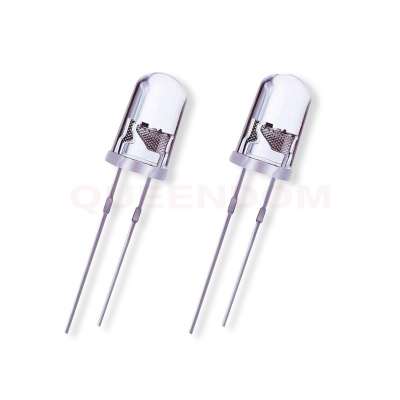

Biomedical Light Source PCR Optics -Model: 5mm LED

modelB5B302C-A/C-Q/RB5B302C-J/k-P/QB5G302C-C/E-P/SB5Y302C-D/F-P/QB5R302C-C/F-Q/R
Excitation wavelength (nm)445480530595625
Fluorescence  detection wavelength (nm)430470525590635
Light source diameter (mm)5/8/105/8/105/8/105/8/105/8/10
Detection  distance (mm)5.5-6mm5.5-6mm5.5-6mm5.5-6mm5.5-6mm
optical densityOD6OD6OD6OD6OD6
Spot  diameter (mm) 3-200 3-200 3-200 3-200 3-200
Light source interface terminal  (input voltage V)1.9-3.2V1.9-3.2V1.9-3.2V1.9-3.2V1.9-3.2V
Light  source interface terminal (input current mA)20-150MA20-150MA20-150MA20-150MA20-150MA
Analog signal output (V)0-3.3V0-3.3V0-3.3V0-3.3V0-3.3V
Applicable  dyes
  FAM,SYBR   Green.etc Green .etc ROX .etc CY5.etc


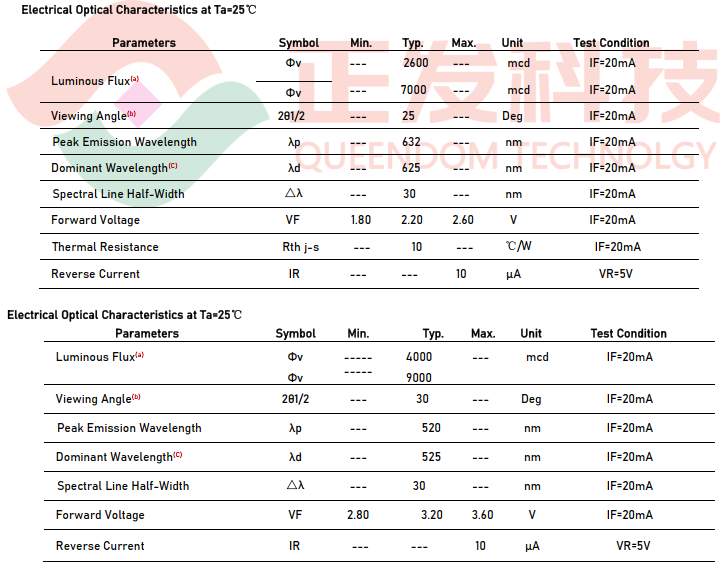

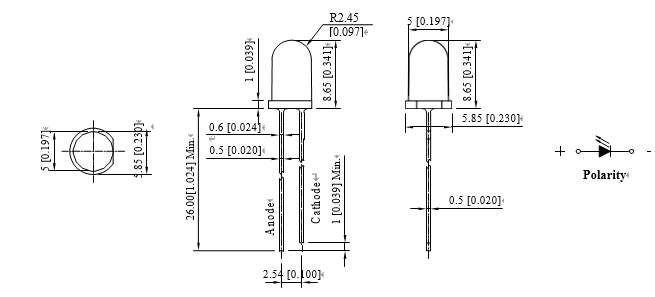

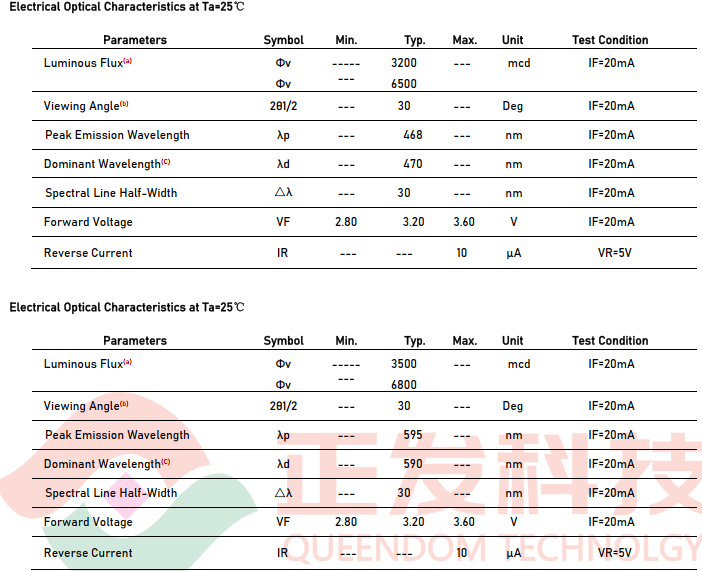

Technology



Note:1. Derate linearly as shown in Figure 4 for temperature above 25°C.

Part No.

Emitting Color

Lens Color


B5R302C-C/F-OR

Red Color LED

Water   Clear

B5G302C-C/E-P/S

Pure Green   Color LED

Water   Clear

B5B302C-J/k-P/Q

Blue Color   LED

Water   Clear

B5Y302C-D/F-P/Q

Yellow   Color LED

Water   Clear
