Model:234MM Tomb Without Flange LED-RJ45 connector

Size[mm]：234

Power[W]：0.06

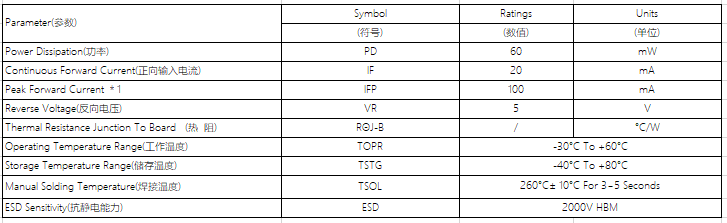

Peak parameters：Absolute Maximum Rating(At TA=25°C)

Note:1. Derate linearly as shown in Figure 4 for temperature above 25°C

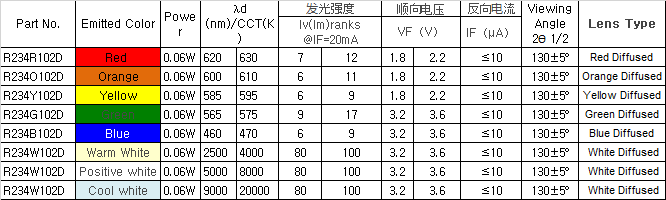

Product parameters：Absolute Maximum Rating(At TA=25°C)

Notes:

Luminous intensity is measured with a light sensor and filtercombination that approximates the CIE eye-response curve.2θ1/2

is the o-axis angle where the luminous intensity is 1⁄2the peak intensity.c.   The dominant wavelength (λd) is derived from the

CIEchromaticity diagram and represents the single wavelength which defines thecolor of the device.

Packaged by Taiwan chip, this product has resistant to high temperature glue. In terms of welding, we use 99.99% pure gold wire.

The product has good consistency , low lumen depreciation and high brightness.

Colloid color: white mist (can be customized as required: colored mist, colorless mist, color transparent, colorless transparent)

Luminous color: white (can be customized as required: white, red, orange, yellow, plain green, emerald green, blue, double color）

Luminous Angle: 130±5° (Angle can be adjusted according to customer requirements)

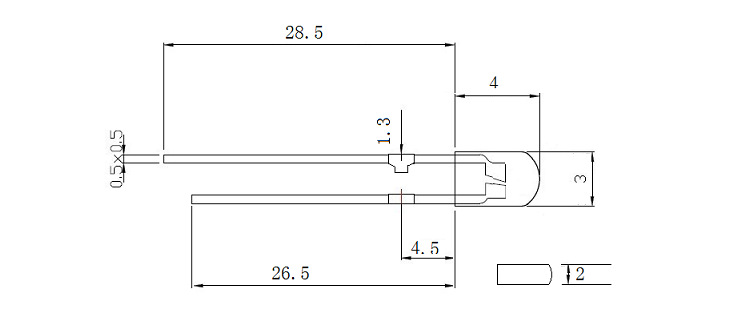

Foot length: long foot (26.5mm) or short foot (16.5mm) can be cut according to requirements

Lead-free : meet EU ROHS standard; SGS certificate

Packing: 1000PCS/bag in esd bag

1.LED display: indoor and outdoor billboards, sports scoreboard, information display, etc

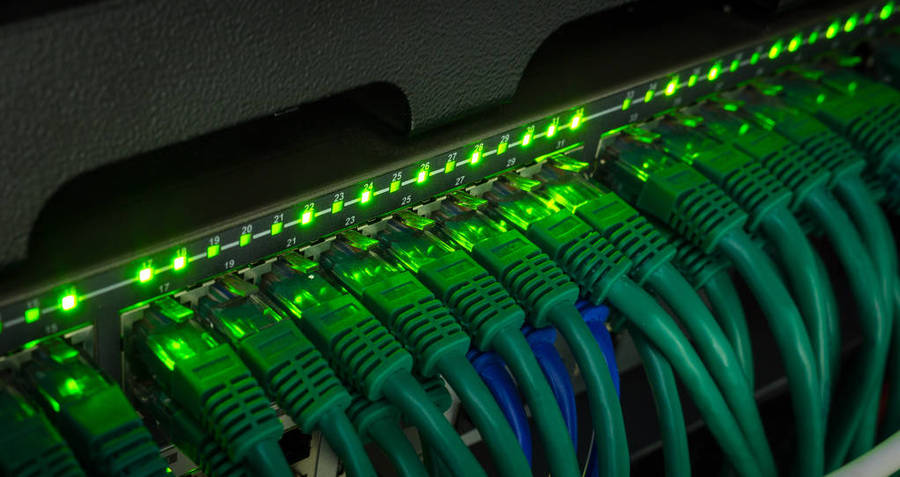

2.Signal indicator lights: traffic lights in urban, highway, railway and functional indicator lights of electronic equipment ;

3.Light color lighting: outdoor landscape lighting and interior lighting as decoration;

4.Special general lighting: portable lighting (flashlight, headlamp), low illumination lighting (corridor lights, door lights, court lights),

reading lighting (reading lights in aircraft, train, car ), microscope lights, camera flashlight, table lamp, street lamp;

5.Safety lighting: mine lamp, explosion-proof lamp, emergency lamp, safety indicator lamp;

6.Backlight: LCD, LCD TV backlight.

7.Automotive lights: including interior lighting and exterior lighting, such as dashboard, electric equipment product indicators

(switch, audio, etc.), switch backlight, reading lights and external brake lights, taillights, side lights and headlights, etc.

8.Other application areas: children's flash shoes, Christmas tree LED lights, etc.
